PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
Previous
Next
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input
PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input

PoE Extender for Coax cable, 100Mbps, up to 500 meters. 48-56VDC input or POE

PoE Extender up to 500 meters

Max speed 100Mbps

Automatic speed control

Consists of Local and Remote Module

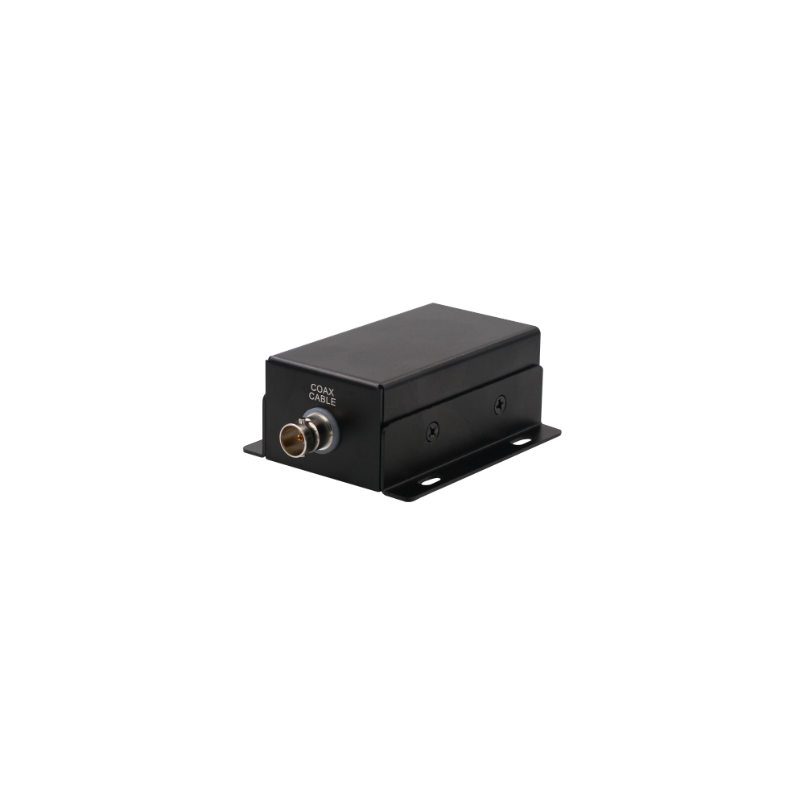

The connection is Coax cable

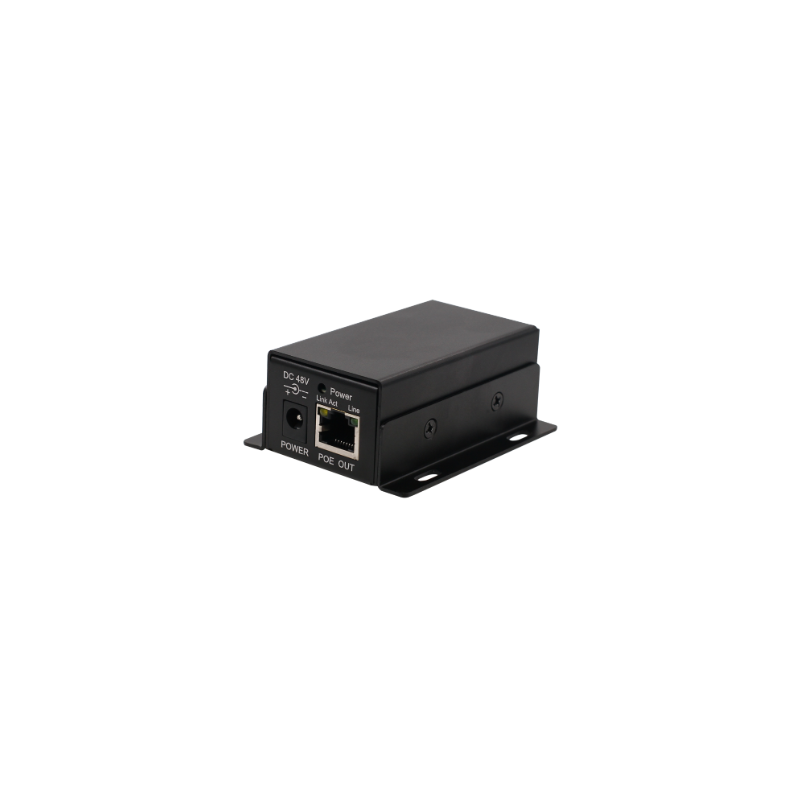

Local module powered from PoE source or DC input

DC input: 48-56VDC

PoE power: 30 Watts

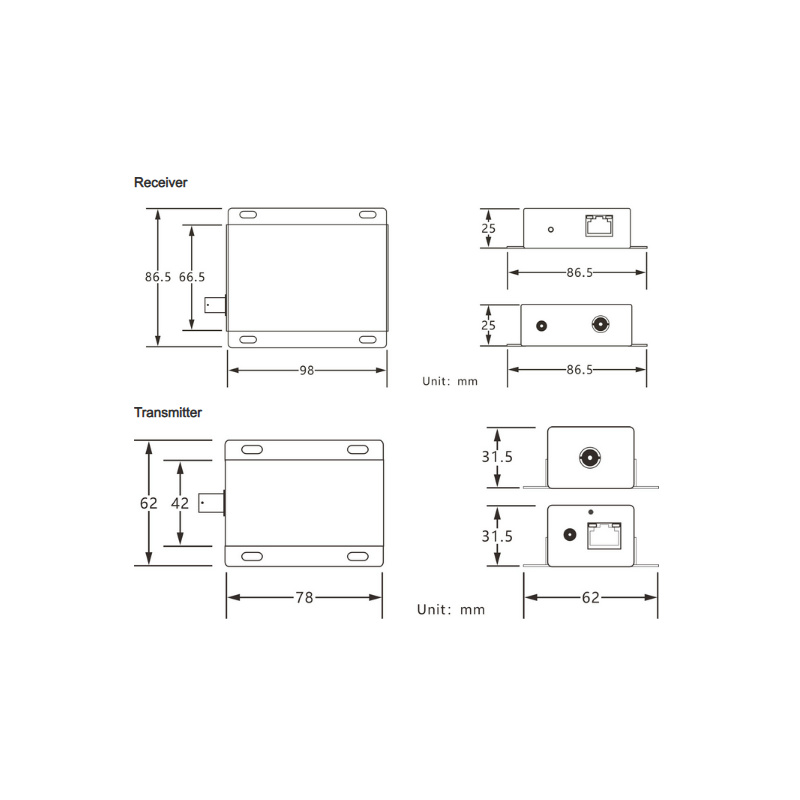

Dimensions: See drawings

Temperature: -20 - +60°C

1,412.70 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number ETH-EXT-POE+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

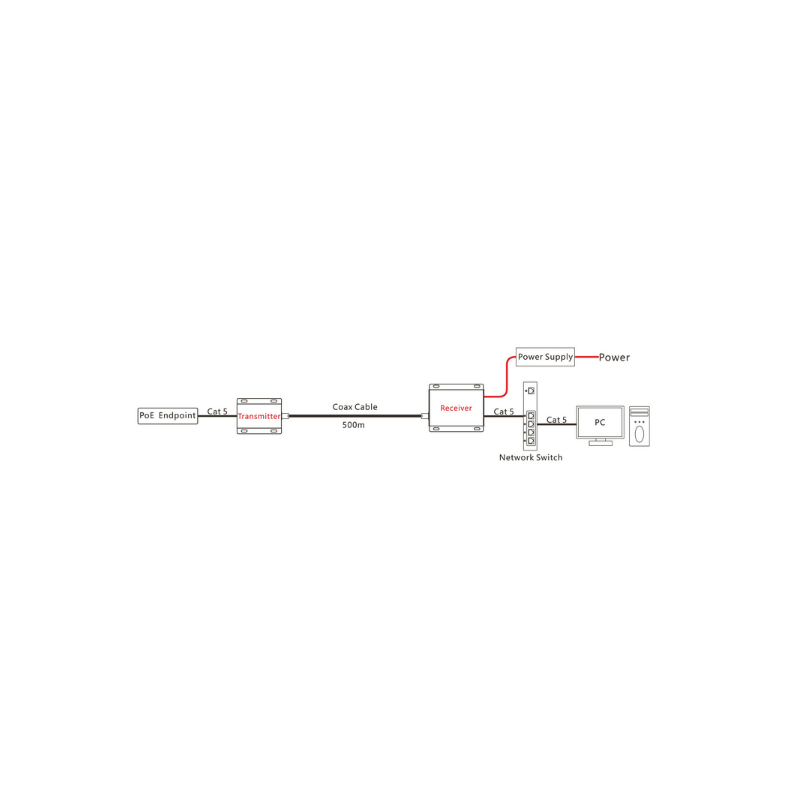

The PoE Extender kit brings both Ethernet signals and PoE power to external devices using existing coaxial infrastructure. Designed to utilize standard BNC connectors, it not only simplifies installations but also saves significant costs by reusing old analog CCTV or other coaxial cabling - no need for major rewiring projects.
