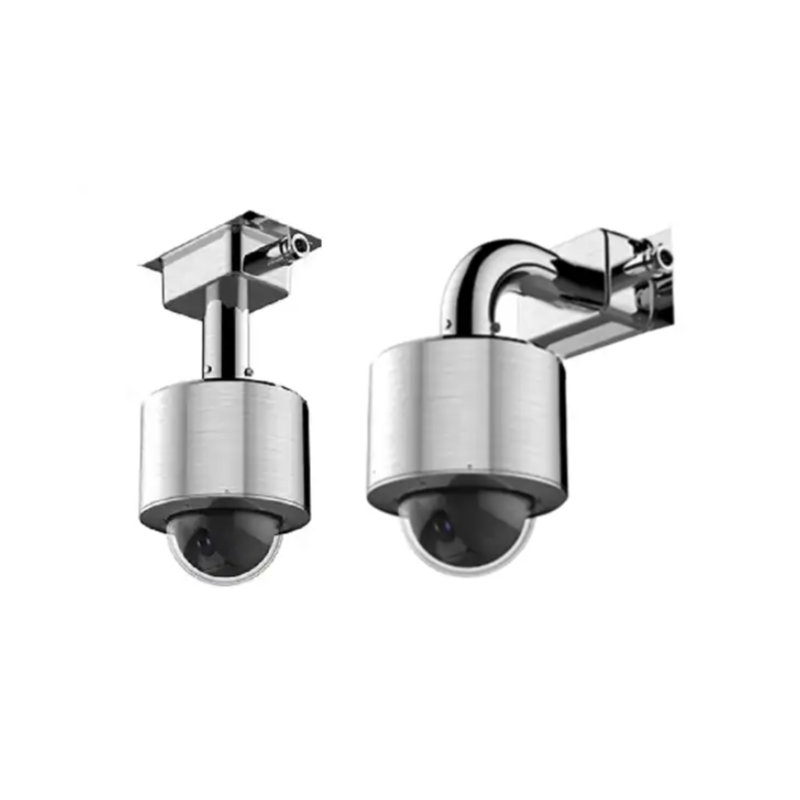

Explosion-Proof 4MP Dome Camera, 26X Zoom, ATEX Certified

Explosion Proof PTZ Speed Dome Camera, 4MP, 26× optical zoom, ATEX

Name: Explosion Proof PTZ Speed Dome Camera, 4MP, 26× optical zoom, ATEX
Brand: Danbit A/S
SKU: KAM-EX-DOME4MP-PTZ
Availability: BackOrder

ATEX Zone 1, Zone 2, Zone 21, Zone 22

Explosion-proof, anti-corrosion, waterproof

4MP 1/2.8" CMOS, up to 1080p at 25/30 fps; H.264/H.265/MJPEG

26× optical (5–130 mm) + 16× digital; ICR day/night; down to 0.001 lux (color) / 0.0001 lux (B/W)

Robust PTZ: 360° pan, −18°–90° tilt, up to 250°/s pan / 150°/s tilt, 1024 presets, tours & scans

IP66/IP68, built-in TVS 4000 V surge protection

Stainless steel 304 (optional 316/316L) for high corrosion resistance

MicroSD/SDHC/SDXC up to 256 GB

IPv4/IPv6, HTTPS, 802.1x, RTSP, etc.; up to 20 simultaneous viewers and 32 user roles

2× DI, 1× DO, motion/audio/tamper/network diagnostics

Working temperature: −40 to +60 °C, ≤95% RH;

Power input: DC 12V 2A

Typical uses: oil & gas, chemical plants, marine/offshore, depots, filling stations

Call +45 56 66 20 20 for price

Quantity

Product number KAM-EX-DOME4MP-PTZ

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Specifications

Operating Temp.	-40°C to 60°C
Andet	PTZ Position Display On/Off
Beskyttelse	IP66, IP68, Built-in surge arrester, Anti-electricity surge TVS 4000V.
Forsyning	DC 12V 2A
Hukommelse	Built-In Micro SD Card Slot, Support SD/SDHC/SDXC Micro Card (Max Support 256G), Support Manual/Alarm Video Recording
Luftfugtighed	≤ 95% (+25°C)
Montering	Wall Hanging, Fixed Bracket, Pillar Base
Opløsning	50Hz: 25fps(1920×1080), 25fps(1280×720); 60Hz: 30fps(1920×1080), 30fps(1280×720)
Protokol	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP
Material	Built-In Micro SD Card Slot, Support SD/SDHC/SDXC Micro Card (Max Support 256G), Support Manual/Alarm Video Recording
Certificate	ATEXII 2G Ex d IIC T6 GbII 2D Ex tb IIIC IP68 T80°C Db

Andre produkter i samme kategori:

5MP ATEX ZONE 1 AND 2 CLASS IIC IP Dome camera in SS304 stainless steel housing, IP68, 2.8mm lens. IR. PoE 12VDC

ATEX CERTIFIED 5MP IP Dome camera in stainless (304) steel housing
2.8mm lens
ECM 24 ATEX-B C000
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC IP68 T80°C Db
All areas EXCEPT mining, zone 1, flameproof, all gases, 85°C, high level of protection
Explosion-proof, anti-corrosion, IP68 waterproof
5MP / 25FPS -1920 x 1080
Color for SH at 0.1 lux
H.264/H.265/MJPEG
Support ONVIF, support HIKVISION, DAHUAIR
Rotate with motion detection
Protocol: RTSP, FTP, PPPOE, DHCP, DDNS, NTP
3D digital noise reduction
IR up to 15 meters, turned on at 0lux
Onvif, PSIA, CGI, Isapi
Steel housing in 304 (Option SS316L/ min. 5 pcs)
Suitable for areas with explosive gases
Suitable for areas with explosive dust
Suitable for areas with corrosive liquids
Supply voltage: 12VDC, PoE
Mounting bracket included

15,738.08 NOK

Item Number: KAM-EX-DOME5MP

Physically in stock

2MP ATEX ZONE 1 AND 2 CLASS IIC IP Dome camera in 304 steel housing, IP66, 6mm lens. IR. 12VDC

ATEX CERTIFIED 2MP IP Dome Camera in Steel House
II 2G Ex D IIC T6 GB
All Areas EXEPT mining, Zone 1, FlameProof, All Gases, 85 ° C, High Protection Level
2 MP / 25 FPS -1920 x 1080
Color to SH at 0.1lux
H.264/H.265/MJPEG
With Motion Detection, Rotate
Protocol: RTSP, FTP, PPPOE, DHCP, DDNS , NTP
3D digital noise reduction
IR 15 meters, on at 0lux
Onvif, PSIA, CGI, Isapi
Steel House in 304 (Option 316/L)
Suitable for areas with explosive gases
Suitable for areas with explosive dust
Suitable for areas with corrosive liquids
Supply voltage: 12VDC

Call +45 56 66 20 20 for price

Item Number: KAM-EX-DOME2MP

2MP ATEX Zone 1 and 2 CLASS IIC compact IP camera in 316L steel housing. IP68, NMEA 3X, Zoom 2.8-12mm. PoE or 12VDC

ATEX certified IP camera in steel housing
2 Megapixels
Motor-Zoom from 2.8 - 12mm @F1.6
NMEA-4X, IP68/IP69
H.264+/ H.264/ M-JPEG Compression
Smart Focus System with remote focus adjustment
DMR digital noise reduction
PoE Power over Ethernet, 2.88W
PoE 9W with heater on at -40°C
Day and night manual switch time control
Operating temperature -40℃ - +65℃
The heater is switched on at -40°C
Micro SD Card Backup up to 64GB
2-way Audio
Support iPhone/Android/Mac
SDK for Software Integration
Free Bundle 36 Ch Recording Software
Dimensions: L145 x Ø95 mm
Weight: 3.8kg
Label length: 4 metres

28,380.92 NOK

Item Number: KAM-EX-BULL2MP-Z

2MP ATEX Zone 1 and 2 CLASS IIC IP Bullet camera in 304 steel housing, IP66, 2.8 - 12 mm lens. Window wiper. 12VDC

ATEX certified 2MP IP Bullet camera in steel housing
II 2G Ex d IIC T6 Gb
All areas except mining, Zone 1, Flameproof, All gases, 85°C, high protection level
2 MP / 25 fps -1920 x 1080
Motor zoom from 2.8 - 12 mm
Color for sh at 0.1Lux
H.264/H.265/MJPEG
With motion detection, rotate
Protocol: RTSP, FTP, PPPOE, DHCP, DDNS, NTP
3D digital noise reduction
Window wiper
ONVIF, PSIA, CGI, ISAPI
Steel housing in 304 (Option 316/L)
Suitable for areas with explosive gases
Suitable for areas with explosive dust
Suitable for areas with corrosive liquids
Supply voltage: 12VDC

Call +45 56 66 20 20 for price

Item Number: KAM-EX-BULL2MP-V

2MP ATEX Zone 1 and 2 CLASS IIC IP Bullet camera in SS316L steel housing, IP66, 4mm lens. IR. PoE and 12VDC

ATEX certified 2MP IP bullet camera in steel housing
II 2G Ex d IIC T6 Gb
All areas except mining
Zone 1, flame resistant
All gases, 85°C
High level of protection
2 MP / 25 fps -1920 x 1080
Color to B/W at 0.1Lux
4 mm lens
H.264/H.265/MJPEG
With motion detection, rotate
Protocol: RTSP, FTP, PPPOE, DHCP, DDNS, NTP
3D digital noise reduction
IR 15 meters, ON at 0Lux
ONVIF, PSIA, CGI, ISAPI
Steel housing in SS316L
Add-on option 304 steel
Suitable for areas with explosive gases
Suitable for areas with explosive dust
Suitable for areas with corrosive liquids
Supply voltage: PoE and 12VDC
With 4 meter cable

13,706.34 NOK

Item Number: KAM-EX-2MP-L-P

2MP ATEX Zone 1 and 2 CLASS IIC IP Bullet camera in 304 steel housing, IP66, 4mm lens. IR. PoE and 12VDC

ATEX certified 2MP IP bullet camera in steel housing
II 2G Ex d IIC T6 Gb
All areas except mining
Zone 1, flame resistant
All gases, 85°C
High level of protection
2 MP / 25 fps -1920 x 1080
Color to B/W at 0.1Lux
4 mm lens
H.264/H.265/MJPEG
With motion detection, rotate
Protocol: RTSP, FTP, PPPOE, DHCP, DDNS, NTP
3D digital noise reduction
IR 15 meters, ON at 0Lux
ONVIF, PSIA, CGI, ISAPI
Steel house in 304
Add-on option 316/L steel
Suitable for areas with explosive gases
Suitable for areas with explosive dust
Suitable for areas with corrosive liquids
Supply voltage: PoE and 12VDC

12,515.86 NOK

Item Number: KAM-EX-2MP

2MP Wireless ATEX camera with 4G, II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T80°C Db, IP66

Wireless wifi explosion-proof camera

Supports 4G, Wi-Fi

2.8-12mm lens

High quality IR lamp.

Supports up to 128GB storage cards

Suitable application of 4G wireless Wifi explosion-proof camera

Can be used in extreme situations such as the oil industry, chemical industry, mining,

military industry, medicine, oil depots, ships, drilling platforms, gas stations, food processing, etc.

ATEX:

II 2G Ex d IIC T6 Gb

II 2D Ex tb IIIC IP68 T80℃ Db

Uses SONY1/3"CMOS Sensor CCD, resolution up to 1920 x 1080 pixels.

Uses 2.8-12mm lens, easy monitoring of distant targets

IR lamp up to 60 meters.

Glass surface treatment with nanotechnology.

Low power consumption

DC12V, other voltages can be purchased.

Optional purchase with PoE supply

SS 304 stainless steel.

23,066.64 NOK

Item Number: KAM-EX-BULL2MP-16LTE

2MP Wireless ATEX camera with Wifi, and PoE II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T80°C Db, IP66

Wireless wifi explosion-proof camera

Supports Wi-Fi and PoE

2.8-12mm lens

High quality IR lamp.

Supports up to 128GB storage cards

Suitable application of wireless Wifi explosion-proof camera

Can be used in extreme situations such as the oil industry, chemical industry, mining,

military industry, medicine, oil depots, ships, drilling platforms, gas stations, food processing, etc.

ATEX:

II 2G Ex d IIC T6 Gb

II 2D Ex tb IIIC IP68 T80℃ Db

Uses SONY1/3"CMOS Sensor CCD, resolution up to 1920 x 1080 pixels.

Uses 2.8-12mm lens, easy monitoring of distant targets

IR lamp up to 60 meters.

Glass surface treatment with nanotechnology.

Low power consumption

DC12V, other voltages can be purchased.

Optional purchase with PoE supply

SS 304 stainless steel.

22,495.22 NOK

Item Number: KAM-EX-BULL2MP-16W
