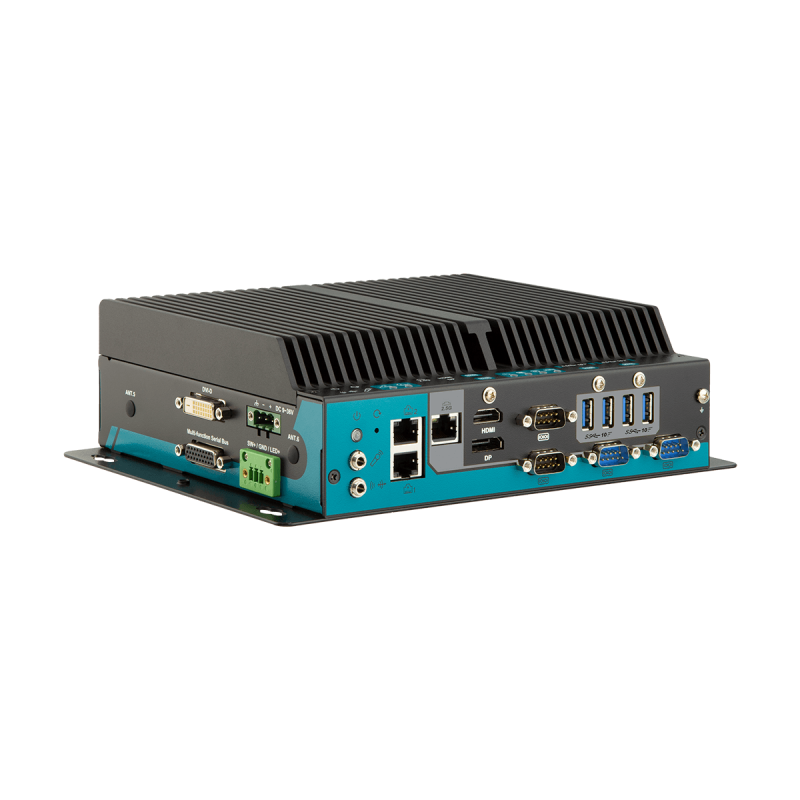

Fanless Embedded PC with 11th Gen. Intel® i7 CPU (Other Vsersions: i3 and i5)
11th Gen. Intel® i7 CPU (Optional: i3, i5)
2 x 260-pin DDR4 SO-DIMM (64GB Max)
1 x M.2 M-Key
1 x 2.5” HDD/SSD
16 x I/O
4 x COM
3 x LAN(2xPoE)
4 x USB3.1
Remote PWR
1 x DVI-D
1 x HDMI
1 x DP
TPM 2.0
Secure Boot
Mounting: Wall-mount (Option: DIN-rail or VESA)
Power Input: 9~36 VDC
Dimensioner: 210x180x70mm (WxDxH)
Operating Temp.-20 ~ 60 °C With airflow
Call +45 56 66 20 20 for price
Quantity
close
Specifications
| CPU | Intel® Core™ i3-1115G4E<br>Intel® Core™ i5-1145G7E<br>Intel® Core™ i7-1185G7E |
|---|---|
| Memory Type | DDR4 |
| Max. Memory Capacity | 64 |
| Memory Channels | Dual Channel |
| Graphics | Intel® Iris® Xe Graphics |
| Digital I/O | 8 x DI & 8 x DO w/ 1.5KV isolation |
| Expansion | 1 x M.2 B-Key 2242/3042/3052<br>1 x M.2 E-Key 2230<br>1 x mPCIE |
| Power Input | DC 9~36V |
| Max. Power Consumption | 120W |
| USB | 4 x USB-A 3.2 |
| Serial | 2 x DB-9 (RS232)<br>2 x DB-9 (RS232/422/485) |
| LAN | 2x 1Gb LAN<br>1x 2.5Gb LAN |
| Audio | 1 x Mic-in & 1 x Line out |
| Operating Temp. | -20 ~ 60°C |
| Storage Temp. | -40 ~ 70°C (-40 ~ 158°F) |
| Operating Humidity | 10-95% @ 60°C (non-condensing) |
| Vibration | 5~500Hz 3 Grms |
| Shock | 40G peak acceleration (11 m sec. duration), operation<br>80G peak acceleration (11 m sec. duration), nonoperation<br>According to IEC 60068-2-27 |
| Weight | 3.7kg |
| Dimensions | 210 x 180 x 70 mm |
Robust and stable industrial embedded PC with 11th Gen. Intel® Core ™ in CPU.
Can be supplied complete with CPU, RAM and SSD / HDD. Can be supplied with other configuration, contact sales.
Voltage supply is purchased separately
