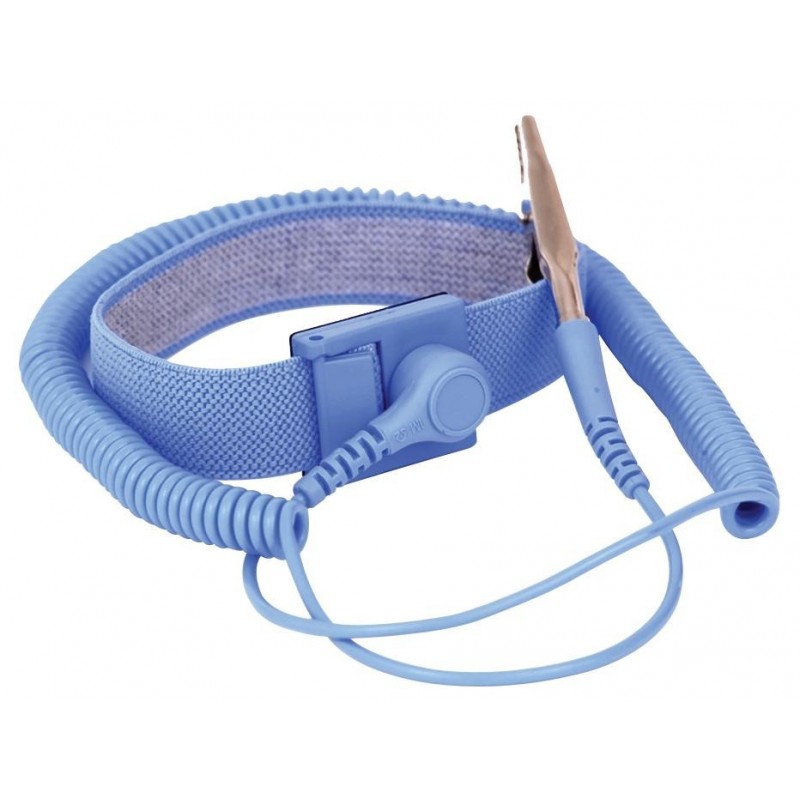

ESD wristband + spiral cable with crocodile clip

clearance

PC with 80186 80 MHz CPU

NOTE: Contract with Danbit A / S and User Agreement with service supplier MUST be established before purchase!

Payment system with touch display.
accept contactless, chip, magnetic stripe and mobilepay.
GSM antenna connector MMCX to 6 digital outputs. Can be programmed with the time difference when paying. To 6 deaktiveringsindgang2. Can be configured to disable the machine
can be connected to a vending machine, washing machine, door, etc.
Web-based control panel.
Communications Internet or WiFi or 4G
Support for setup can be purchased.
Supplied with SIM card (4G)
Supply voltage: 10 - 24VDC, 10 - 42VAC / 2Amp (power supply included)

Fanless
Intel Celeron 2955U
Chipset Intel QS77 Express Chipset High Speed ​​
RAM: 1 x SO-DIMM DDR3L 1333/1600, 1333/1600 LPDDR3 MAX. 8GB
Intel® HD Graphics 4400 1920 x 1080 HD
2 x RJ45 Gbit Intel
2 x HDMI
4x USB 3.0
4 x USB3.0
4 x USB 2.0
6 x RS232
WIFI: OPTION!
Supply DC12
234 * 150 * 50MM
Support: Windows 7 / Windows 8 / Windows 10 / Linux

Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
1x M.2 B-Key 3052 support 5G module
Optional 1x 2.5’’ SSD (needs to be ordered)
3x 2.5G Ethernet port
3x full-size Mini PCI-E sockets
4x COM (RS232/422/485)
2x USB 3.1 & 2x USB 2.0
Supports DIN-rail mount, wall mount
TPM 2.0
Extended operating temperature from -20°C to 70°C
9V~36V DC wide-range power input Over/Under/Reverse voltage protection

DC power cable with ferrite
1 meter
3-pin terminal block at one end, cable lugs at the other end
14AWG (2.08mm)
Accessories for high power embedded PCs

Intel® Apollo Lake Atoms ™ E3950 quad-core processor
4-ch isolated di and 4-ch isolated do
1X isolated CAN bus 2.0
1 x M.2 Socket
3 x Mini-PCie Socks
8 ~ 35V DC Input
Operating Temp: -25 ° C Till 70 ° C
1x DDR3L-1866, up to 8GB

11th Gen. Intel® i3 CPU (Optional: i5, i7)

2 x 260-pin DDR4 SO-DIMM (64GB Max)

1 x M.2 M-Key, 1 x 2.5” HDD/SSD

16 x I/O

4 x COM

3 x LAN(2xPoE)

4 x USB3.1

TPM 2.0

Secure Boot

Remote PWR

Video output: DVI-D, HDMI, DP

Mounting: Wall-mount (Option: DIN-rail or VESA)

Power Input: 9~36 VDC

Dimensioner: 210x180x70mm (WxDxH)

Operating Temp.-20 ~ 60 °C

I5 8265U 2.5-3.1Ghz
Intel HD620
2x DDR3L DO-DIMM max. 16 GB of RAM
1x 2.5" HDD/SSD
1x msata 3.0 (ssd support)
4x USB 3.0
3x USB 2.0
1x Ethernet 10/100/1000 RTL 8168E
1xVGA, 1x HDMI (Dual display support)
DC12Vdc (jack plug)
Wall mount
Auto power on, Wake On Lan
0~50 degrees
1.3Kg
Dimensions: 234x150x50mm (WxDxH)
OPTION: WIFI 2 antennas
OS support: Windows 7 / 8 / 10, Linux Compatible (64 bit)
