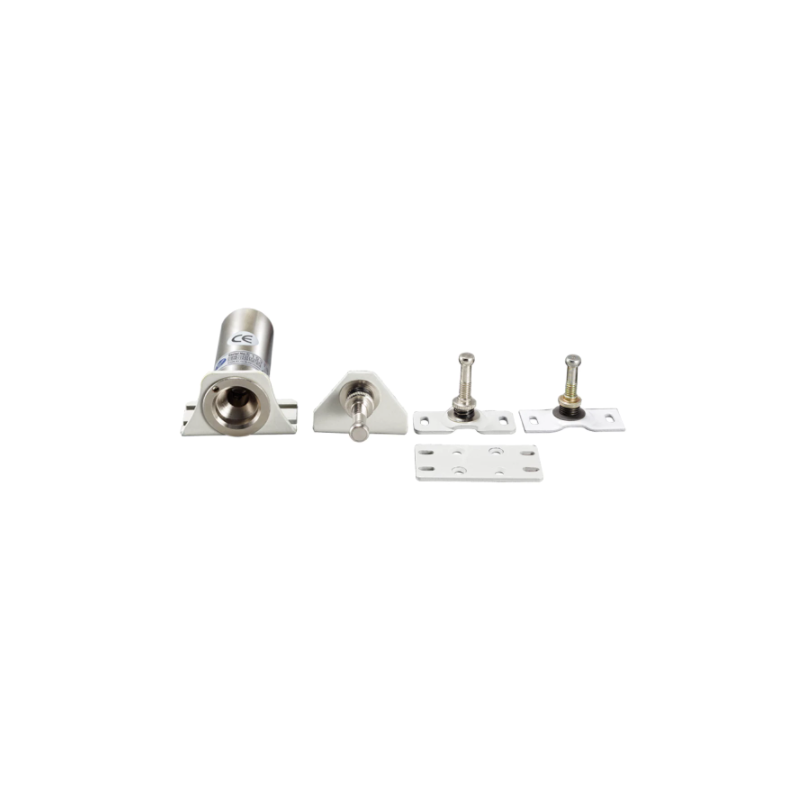

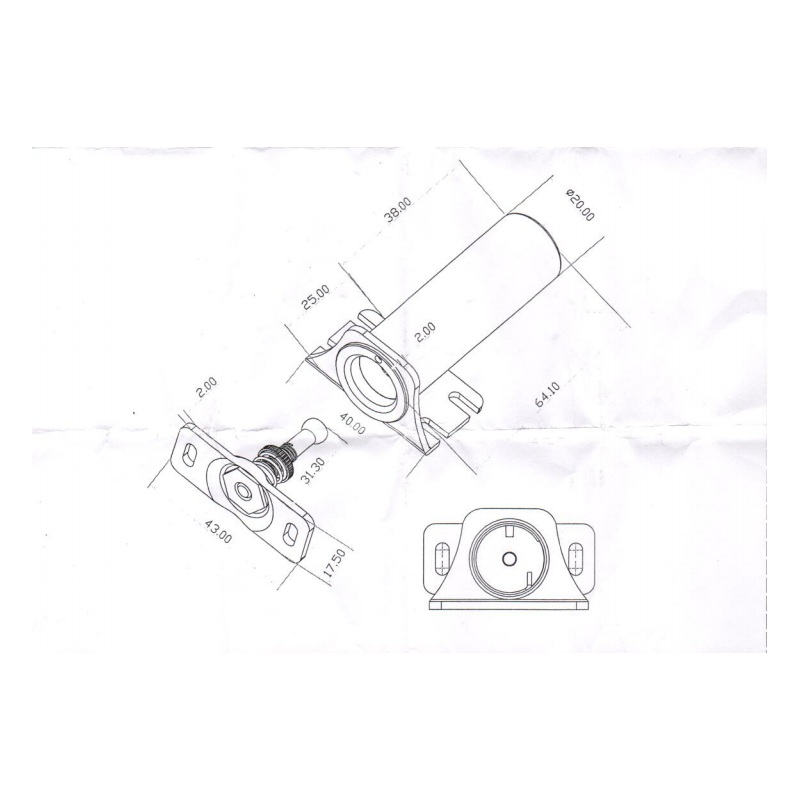

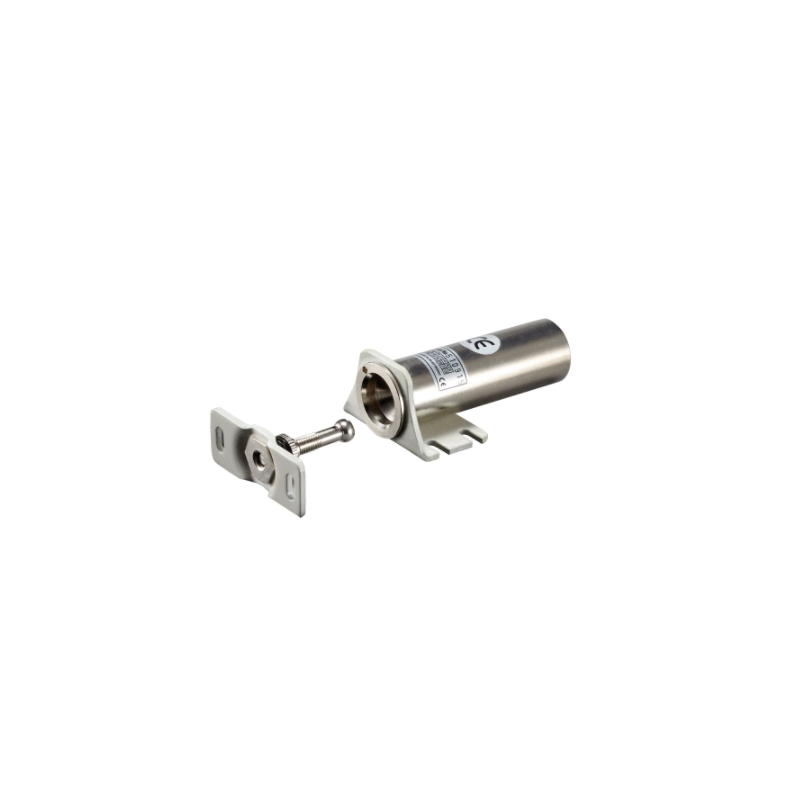

Electronic lock for mounting on cabinets and doors. Holding force of 150kg. Holding voltage is 24VDC. Release when power off.

Miniature Electronic holding magnet for cabinets and closets
Supply Voltage 12 VDC, 140mA minimum
Holding force up to 36 KG
Operating temperature: -10 ~ 55C
IP65 close Stainless steel with epoxy filler
magnet dimensions: 70 x 38 x 26 mm
Counter-plate dimensions: 80 x 32 x 18.5 mm
Weight of 350 g

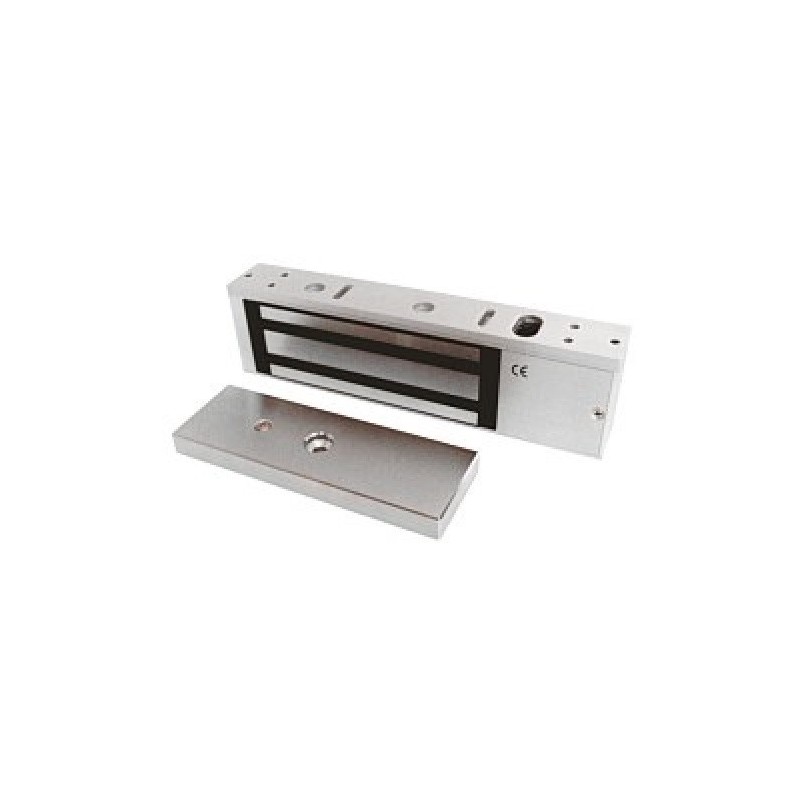

door magnet with clamping force up to 545kg
Aluminum housing and vandal proof
Supply voltage for team: 12VDC or 24VDC, 0.5A / 0,25A
No holding power at any voltage
Operating temperature: -10 to + 55°C
Magnetic: 267 x 68 x 40 mm
Door-plate: 185 x 61 x 16 mm
Mounting plate for the frame: 267 x 40 x 8 mm
Anti-magnetic feature
Weight : 4,9kg

The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C
Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg

door magnet with clamping force up to 545kg
Rusrfri steel cabinet full sealed with epoxy and is vandal proof
Equipped with thread for flexible tube to protect the cable
Supply voltage for team: 12VDC or 24VDC, 6Watt
Cable change-over between 12 and 24 VDC
Only holding force when energized
With Bond Sensor (Lock indicator)
Operating temperature: -10 to + 55°C
Magnetic: 220 x 62 x 41 mm
Door-plate: 185 x 61 x 16 mm
Anti-magnetic feature
Weight: ca. 5 kg

Electronic door magnet for double doors, swing doors etc.
Holding force up to 272 kg for each door
Aluminum housing and vandal-proof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6Watt
Switching between 12 and 24VDC
No holding power when de-energized
With Bond sensor (door closed sensor)
Option: Door status sensor, Re-lock timer
Operating temperature: -10 - 55°C
Double magnet: 500 x 44 x 26 mm
Door panels: 185 x 38 x 12 mm
Double mounting plate: 500 x 26 x 5.5 mm
Weight: approx. 5 kg
Additional access system - see Accessories

The door magnet with holding force up to 363 kg
Rust free steel cabinet full sealed with epoxy and is vandal safe
Voltage for hold: 12VDC or 24VDC, 6 Watt
Switch between 12 and 24VDC
No holding force at no voltage
Operating temperature: -10 to + 55 ° C
Magnet: 216 x 53 x 32 mm
Amaturple plate: 185 x 45 x 14 mm
anti magnetic function
Weight: Approx. 4.5 kg

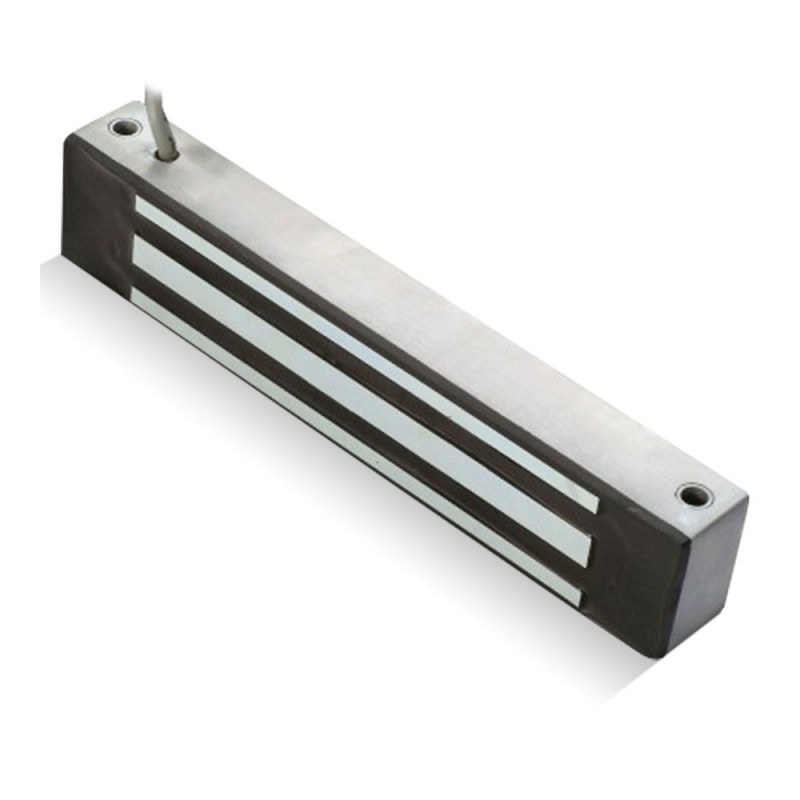

Designed for narrow frames, gates, out-swing, in-swing and glass doors.
Weather resistant: IP65, designed for harsh outdoor environment.
Vandal-resistant stainless steel casing.
Low maintenance, High reliability.
No holding force at zero voltage.
Holding force: 600 lbs (272 Kg).
Suitable for harsh environment.
Anti-Residual Magnetism (ARM).
Armature Plate: 185, 38, 12 mm.
Magnet: 218, 44, 27.5 mm.
Dual voltage 12 or 24 VDC.
Weight: 1.5 Kg.

Miniature electronic holding magnet for cabinets
Supply voltage 12 VDC, minimum 140mA
Holding force: Up to 36 kg
with Bond sensor - Relay output COM, NC
Bond sensor is a closed indicator - Can inform the controller
Operating temperature: -10 ~ 55ºC
IP65 Stainless steel with epoxy filling
Magnet dimensions: 70 x 38 x 26 mm
Holding plate dimensions: 80 x 32 x 18.5 mm
Weight 350 g
