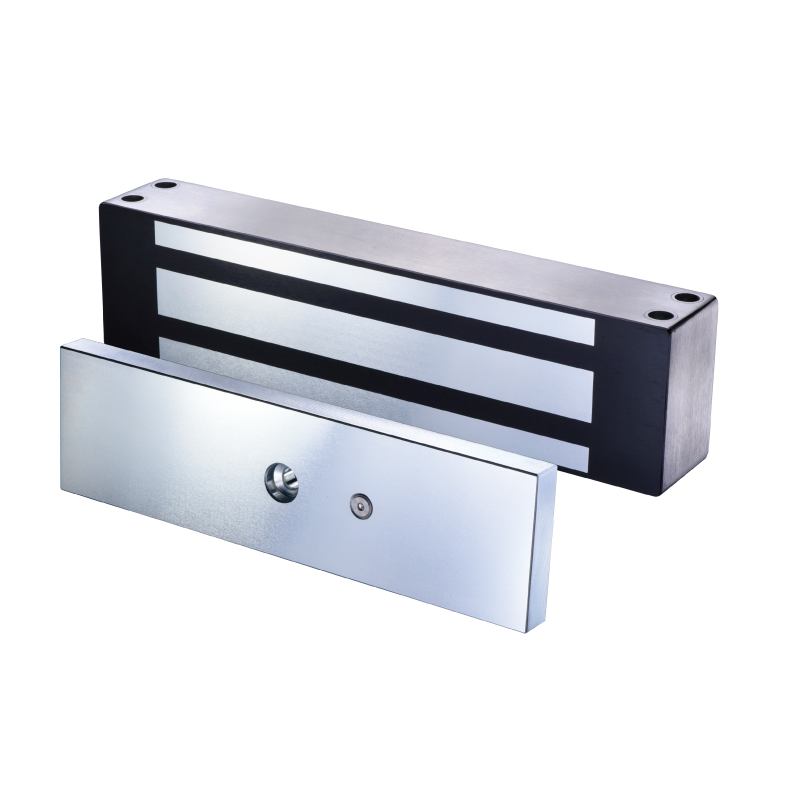

Waterproof electronic door magnet, 545 kg holding force, 12 / 24VDC. Stainless steel
Waterproof electronic door magnet, 545 kg holding force, 12 / 24VDC. Stainless steel
Previous
Next
Waterproof electronic door magnet, 545 kg holding force, 12 / 24VDC. Stainless steel
Waterproof electronic door magnet, 545 kg holding force, 12 / 24VDC. Stainless steel

Waterproof electronic door magnet, 12/24VDC manual switching. Stainless steel housing. Holding power up to 545kg

Door magnet with holding power up to 545kg
Stainless steel cabinet fully sealed with epoxy
Supply voltage for team: 12/24VDC 6Watt
At 12V connect red to white, yellow to black
At 24V connect white to yellow. Red + Black -
No holding power when de-energized
Operating temperature: -10 to +55°C
Magnet: 220 x 68 x 42 mm
Amatur plate: 185 x 61 x 16 mm
Anti magnetic function
Weight: approx. 5 kg

2,512.70 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number DOOR-MAGNET-V12CB
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

DOOR-MAGNET-V12CB is 100% waterproof in stainless steel execution to the compromious harsh environment. DOOR-MAGNET-V12CB can be used with all access control controls that have relay output. The product contains a powerful electro magnet that "locks" itself fixed to the piece of metal that is mounted on the door. When there is voltage on Door-magnet V12CB, the door cannot be opened. An access control connected to DOOR-MAGNET-V12CBaccepting e.g. A password will interrupt the voltage of the magnetic coil and the magnet drops so that the door can be opened. Holding power: 545 kg. 12 or 24VDC voltage to the holding magnet.
