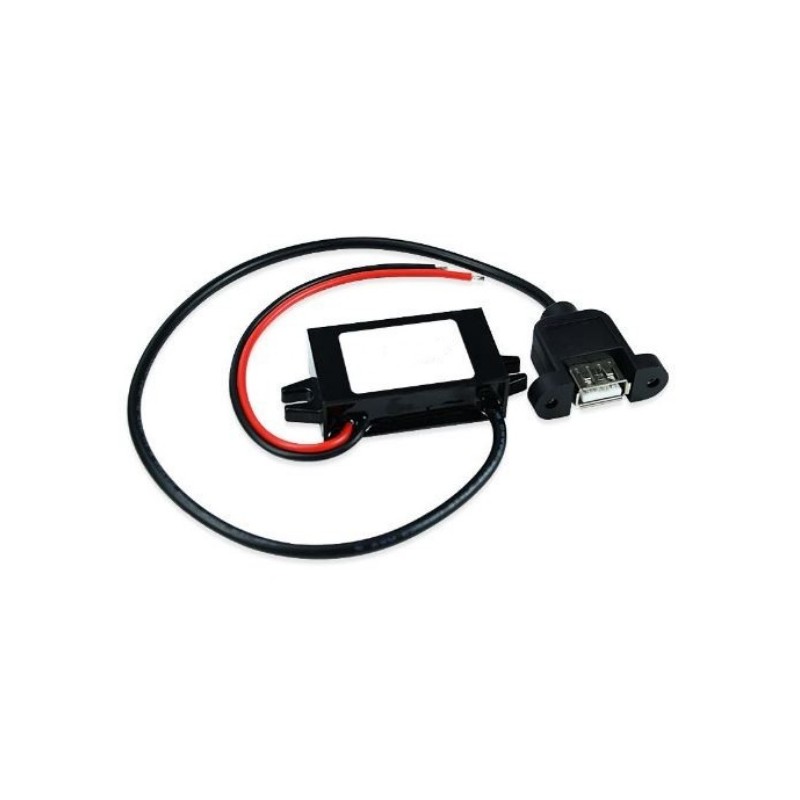

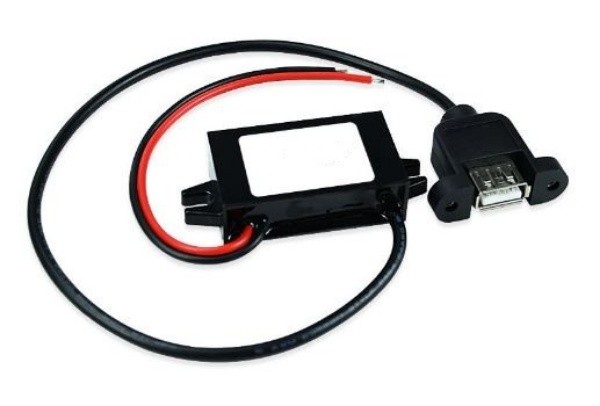

DC / DC converter from 8-35VDC to 5VDC USB female connector. USB OUTLET with 5v
DC / DC converter from 8-35VDC to 5VDC USB female connector. USB OUTLET with 5v
DC / DC converter from 8-35VDC to 5VDC USB female connector. USB OUTLET with 5v

5VDC / 3A (15Watt) power supply from 8 - 35VDC input. With USB-A female connector, waterproof. Not galvanically insulated

8 - 35 VDC DC / DC converter to 5V 3A with USB-A connector.
Waterproof
Not galvanically insulated
5VDC 3Amp (15Watt)

550.79 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number DC-DC24V-5V-USB
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Input Input voltage: DC 12 V (12 V to 5 V)
Output Output voltage: 5 V. Output current: 3A
Weight 0.055kg

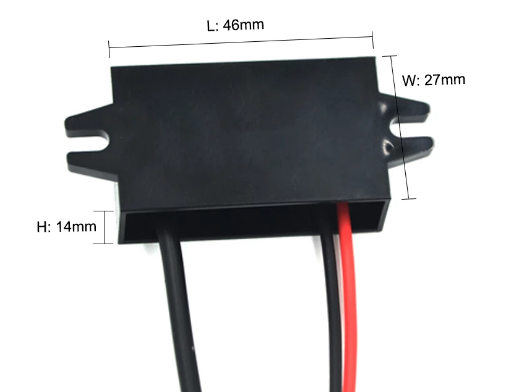

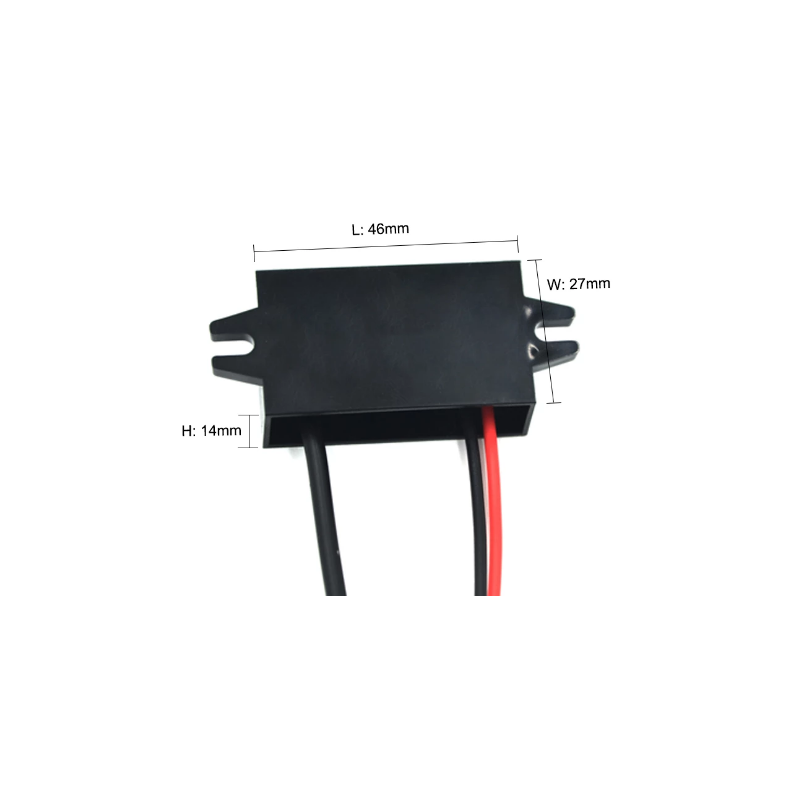

Dimensioner 15cm x 10cm x 3cm

DC / DC converter module 8-35VDC to 5VDC 3A 15W USB-A output connector
Suitable for car or truck

Andre produkter i samme kategori:

Cigar Ducks Universal DC / DC Power Supply from 12VDC to 3VDC / 5VDC / 6VDC / 7.5VDC / 9VDC or 12 VDC
3VDC - 12VDC optional, 2A from 12VDC - 15VDC input with 4 x DC plug adapters and cigar lighter socket.

Switch mode converter from 12-15 VDC
For 3VDC / 5VDC / 6VDC / 7.5VDC / 9VDC or 12 VDC
Max. 2 Amp
4 DC Jack connector included

365.08 NOK
Item Number: CNV12V-UNI
Physically in stock
ADD TO CART
Quick view
USB Phone charger for car 12Vdc to USB 5VDC adapter from cigarette lighter socket in the car. 10 Watt short-circuit proof
5VDC 2.1A (10Watt) adapter for car with USB female plug

5VDC cigarette lighter plug adapter
10W Car Charger

77.78 NOK
Item Number: CNV12V-USB+
Physically in stock
ADD TO CART
Quick view
DC-DC converter USB step-up from 5V USB to 12V/0.7A, 5.5x2.1mm
12VDC / 700mA step-up power supply from 5VDC/2.5A via USB plug. Jack is 5.5/2.1mm

MAX 12V 0.7A (8.4 Watts)
USB to 2.1x5.5 mm plug
To supply 12V/0.7A, the 5V input must be a minimum of 2A
A PC USB2.0 port provides max. 5V/0.5A (2.5 Watt)
A PC USB3.0 port provides max. 5V/0.9A (4.5 Watt)
Laptop is typically 5V/0.2A (1 Watt)
For power consumption above what a USB port can supply - use an external 5V power supply
The power is dependent on the 5V supply (P=V*A) (Power=Voltage * amps)
1 meter cable

293.65 NOK
Item Number: DC-DC5VUSB-12V
Physically in stock
ADD TO CART
Quick view
+5 v DC omformer, maks. 2 A, 10 WforDC/DC converter
5VDC 2A (5Watt) converter from 18 - 36VDC galvanically isolated DIN mounting

18 - 36VDC DC / DC converter to 5VDC
Large DC voltage DC / DC converter
5VDC 2A
Working temperature -25- + 70 ° C

1,688.89 NOK
Item Number: DC-DC5DIN
ADD TO CART
Quick view
DC / DC converter, reduce voltage (Step-down)
19VDC from 9-32VDC 5AMP (95W) waterproof DC / DC converter. Step-up and step-down converter. not galvanically isolated.

Waterproof DC / DC converter
9-32V to 19V
5 Amp
95 Watts
90% (half load), 87% (full load)
-40 ° c ~ + 80 ° c, IP68
Overvoltage protection
Over-current protection
Over-temperature protection
Short-circuit protection
74 * 74 * 32mm
300g

873.02 NOK
Item Number: DC-DC19V-95W
Physically in stock
ADD TO CART
Quick view
DC/DC converter from 18 - 36VDC to 24VDC, 26Watt
24VDC / 1.1A (26Watt) power supply from 18 - 36VDC input. Galvanically isolated between input and output.

18 - 36VDC DC/DC converter to 24VDC fine-tuning

Isolated DC/DC converter with wide voltage range

24VDC 1.1A output

1,112.70 NOK
Item Number: DC-DC24-26W
ADD TO CART
Quick view
12Vdc til 48VDC 8A (385Watt) voltage converter from 12 - 24VDC DC/DC Step-up converter
Output 48VDC / 8A (384Watt), input from 10 - 25VDC. DC-DC step-up, Not galvanically isolated

12-25VDC to 48VDC 384Watt step-up converter
No galvanic isolation between input and output
Input from 10 - 25VDC
93% efficiency
Max. ripple full load: 170mV
No-load current: 70mA
Overvoltage and overheat protected
Aluminum metal housing with IP68 tightness
Flange mounting
Cable length: 14cm
Working temperature -40 - +80°C
Dimensions: 100 x 80 x 39mm
Weight: 500g

1,498.41 NOK
Item Number: DC-DC48V-384W
Physically in stock
ADD TO CART
Quick view
DC-DC power supply 24VDC from 9 - 36VDC in, 10A. Not galvanic isolated
24VDC output from 9 - 36VDC input, 10A (240Watt). Not galvanic between in and out (Buck Boost). IP68.

DC/DC BUCK konverter fra 9-36VDC til 24VDC
Effekt: 240Watt (10Amp)
Ikke isoleret mellem indgang og udgang
Switchmode - 97% effektivitet
IP68 aluminium med epoxy sealing
Kortslutning-, overspænding- og temperaturbeskyttet
Mål: 100 x 80 x 39 mm
Vægt: 470 g

1,253.97 NOK
Item Number: DC-DC24-240W
Physically in stock
ADD TO CART
Quick view
