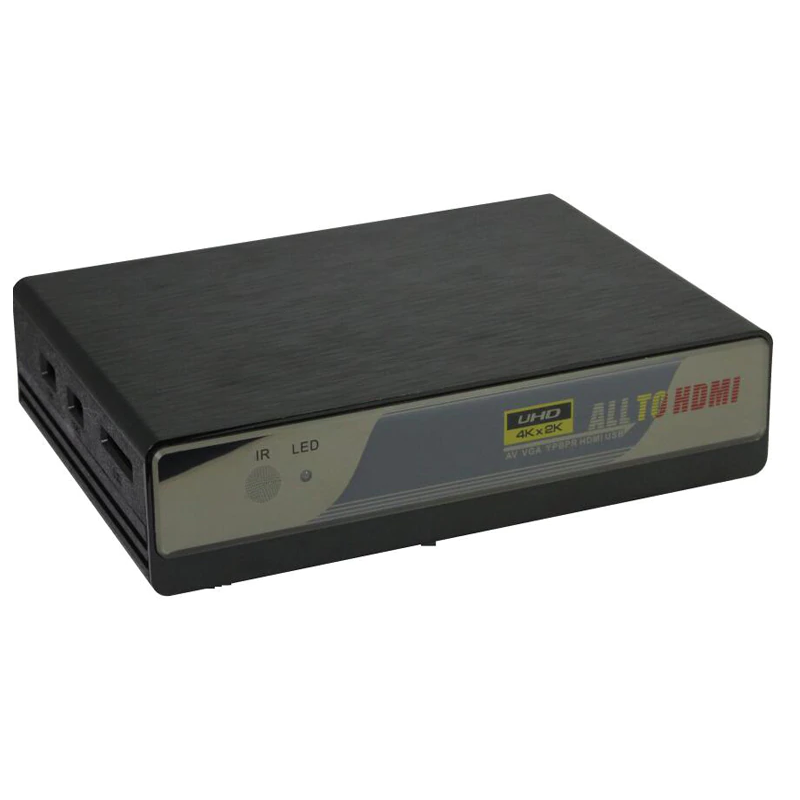

Video converter to HDMI from Composite (CVBS) Video, Component (YPbPr), VGA, HDMI 2 x USB2.0 media memory to HDMI
Video converter to HDMI from Composite (CVBS) Video, Component (YPbPr), VGA, HDMI 2 x USB2.0 media memory to HDMI
Video converter to HDMI from Composite (CVBS) Video, Component (YPbPr), VGA, HDMI 2 x USB2.0 media memory to HDMI
Previous
Next
Video converter to HDMI from Composite (CVBS) Video, Component (YPbPr), VGA, HDMI 2 x USB2.0 media memory to HDMI
Video converter to HDMI from Composite (CVBS) Video, Component (YPbPr), VGA, HDMI 2 x USB2.0 media memory to HDMI
Video converter to HDMI from Composite (CVBS) Video, Component (YPbPr), VGA, HDMI 2 x USB2.0 media memory to HDMI

Composite (CVBS), Component (YPbPr), VGA, HDMI, 2 x USB2.0 media memory for HDMI out. Video scaling. 5VDC

Analog video to HDMI converter with video scaler

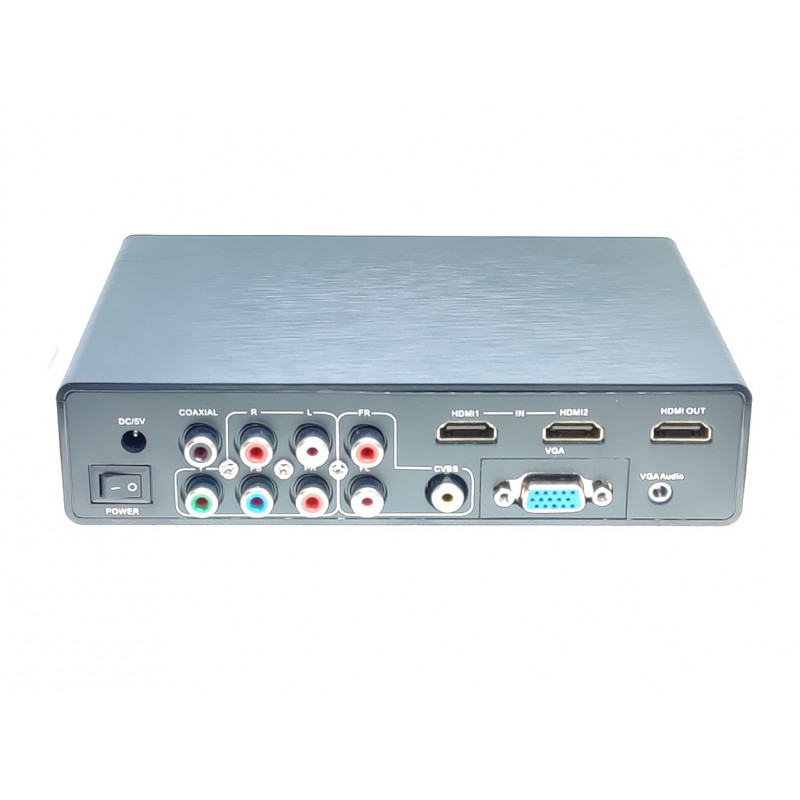

Composite (CVBS) in
Component (YPbPr) in
VGA in
2 x HDMI in
2 x USB 2.0 for memory stick with media playing files
1 x HDMI out
Resolution of HDMI output: 480i, 720p, 1080p, 4K2K @ 30Hz.

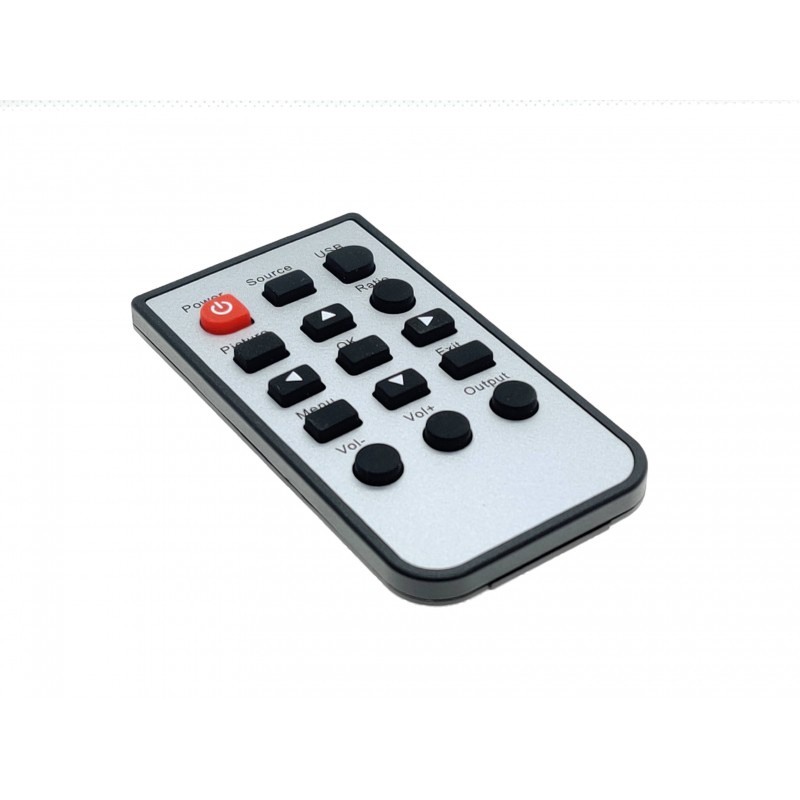

Remote control setup (incl. but excl. CR2032 battery).
Supply voltage: 5VDC / 1A (PSU included)
Can be powered via the USB port (optional cable).
Dimensions: 172 x 130 x 43 mm (W x D x H)

2,063.49 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number CNV-MULTI-HDMI4K
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Batteri CR2032 (medfølger ikke)
Indgang Component, Composite, VGA, 2 x HDMI, 2 x USB 2.0
Skærm 480i, 720p, 1080p, 4K2K @ 30Hz.
Strømforsyning 5VDC / 1A (medfølger), mulighed for forsyning via USB (tilbehør).
Dimensioner 172 x 130 x 43 mm (W x D x H)

Video input formats:
Composite CVBS, PAL, NTSC, SECAM with stereo audio input
Component YPbPr: 1080p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 720p @ 50 / 60Hz, 576i / p, 480i / p with stereo audio input
VGA: 640x480 @ 60Hz, 800x600 @ 60Hz, 1024x768 @ 60Hz, 60Hz 1280x1024, 1280x720 @ 60Hz, 1360x768 @ 60Hz, 1440x900 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 60Hz stereo audio with input
HDMI: 480i two 4K2K @ 30Hz
HDMI output: 480i, 720p, 1080p, 4k2k @ 39 Hz
Media Format USB memory stick: MPEG, H.264, RM / RMVB movie decode, JPEG, BMP , PNG
profile: MPEG1 / 2
audio: MP3 audio

Rev: TS / LO

Andre produkter i samme kategori:

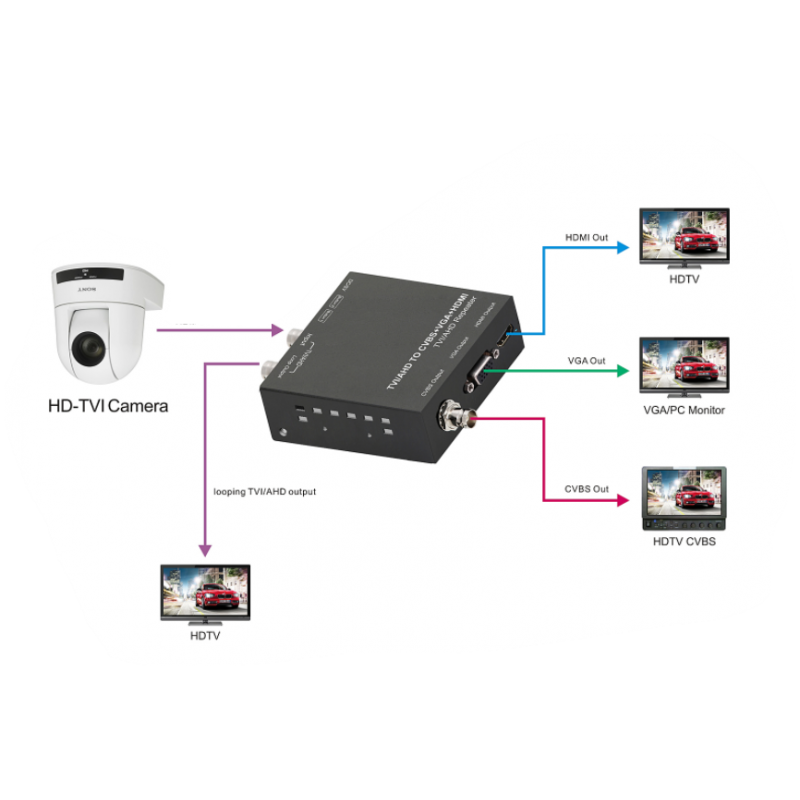

AHD, TVI, CVI video converter to Composite CVBS, HDMI, VGA with loop out for video surveillance
4K 8MP converter from AHD/TVI/CVI/CVBS to HDMI/VGA/Composite converter MAX. 1080p (with loop-out) 12Vdc

The converter AHD / TVI / CVI / CVBS (BNC) video signal to Composite, VGA, HDMI MAX. 1080p

Input: AHD / TVI / CVI / CVBS (BNC) (4k, 8MP)

Loop-OUT: same signal as on the input

CVBS output

VGA Output MAX. 1080p

Output HDMI MAX.1080p

Up to 300 meters over coax cables

Supports cascade connection

Supply voltage: 5–12 VDC (typically 5 V adapter included)

2,944.44 NOK
Item Number: CNV-AHD-MULTI
ADD TO CART
Quick view

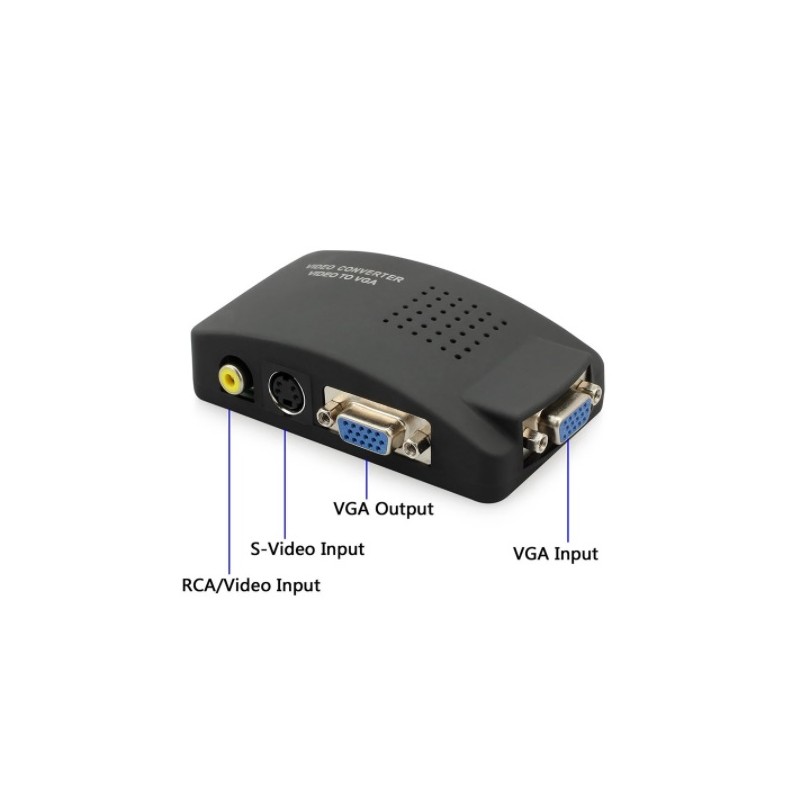

Composite and S-Video to VGA converter with yellow phono video connector and VGA female
Composite and S-Video to VGA converter. Connect analog camera etc. to VGA monitor. Max. 1600x1200. 5VDC

Composite to VGA - with RCA/Phono connector
Additional purchases, if any BNCF-PHONOM (BNC to RCA adapter)
S-VIDEO to VGA
Converts 50Hz to 60Hz (CRT to TFT timing)
Resolution up to 1600 x 1200 points
Power supply included 5VDC

1,512.70 NOK
Item Number: CNV-S-VGA+
Physically in stock
ADD TO CART
Quick view

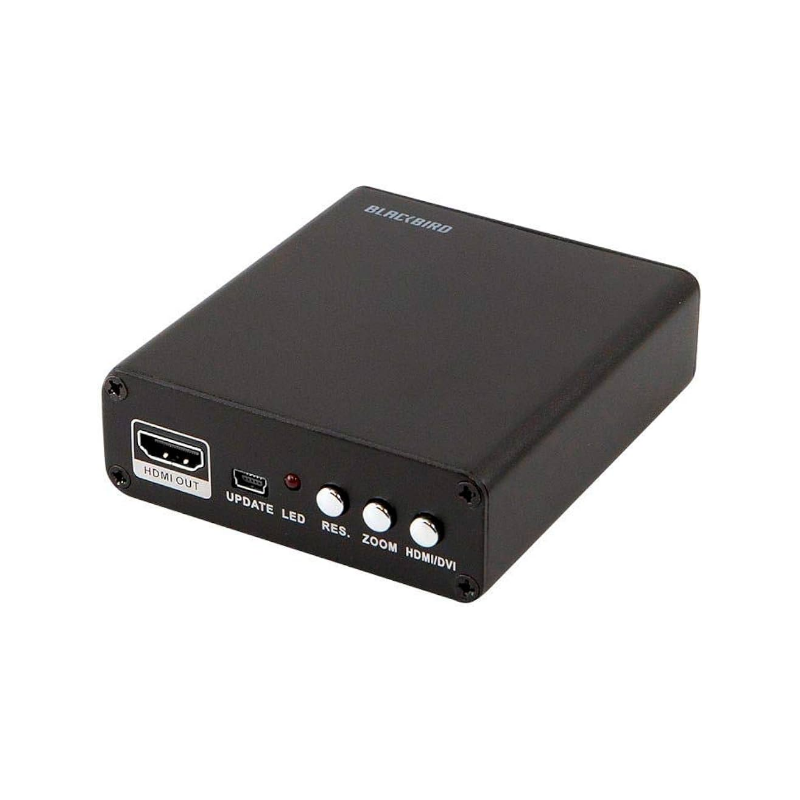

Composite to HDMI HD 4K Upscaling, 3 RCA AV CVBS Composite S-Video R/L Audio S-VHS
Composite to HDMI | HD & 4K Upscaling, 3xRCA AV CVBS Composite S-Video R/L Audio S-VHS
Composite AV / RCA /S-Video Adapter to HDMI
Upscale to 4K
4K@60Hz, 4K@30Hz, 1080P@60Hz, 720P@60Hz.
Automatic PAL and NTSC switching
5VDC/1A included
1,190.48 NOK
Item Number: CNV-AV-HDMI4K
Physically in stock
ADD TO CART
Quick view

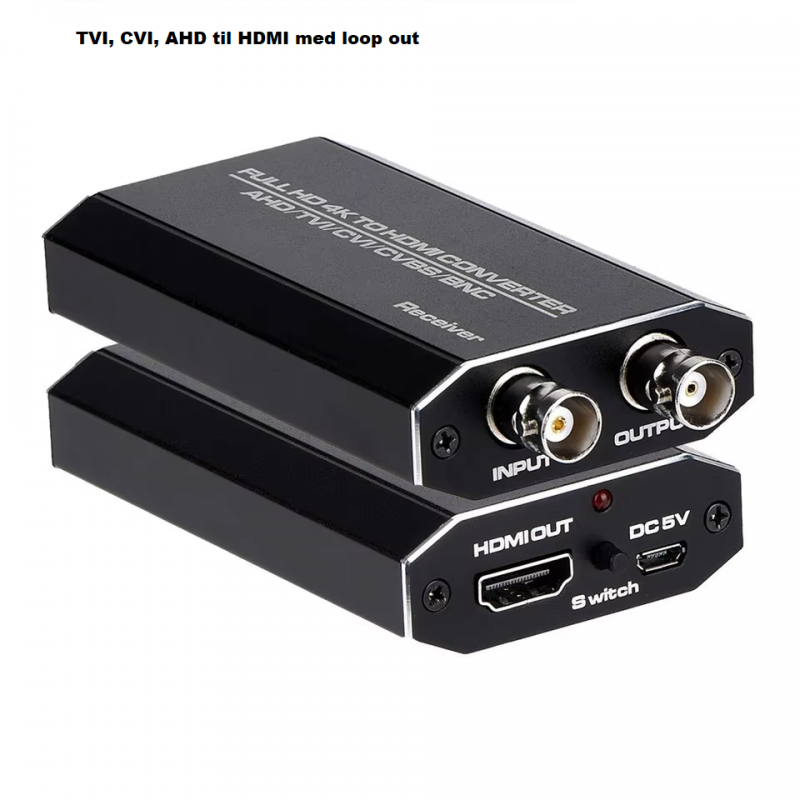

BNC, CVBS (analog), AHD, TVI, CVI signal to HDMI Full HD 1080p, 720p
Video TVI, CVI, AHD BNC to HDMI 1080p/720p for older video signals

Input: 1× BNC, compatible with CVBS (analog), AHD, TVI, CVI signals

BNC input: up to 8 MP (approx. 4K) for TVI/AHD/CVI; video output via HDMI in up to 1080p/60Hz

Output: 1× HDMI, full HD 1080p at 60 Hz can be set to 720p on output

Loop-out on the BNC output

11x1x1cm

5Vdc supply

1,269.84 NOK
Item Number: CNV-AV-HDMI4K+
Physically in stock
ADD TO CART
Quick view
