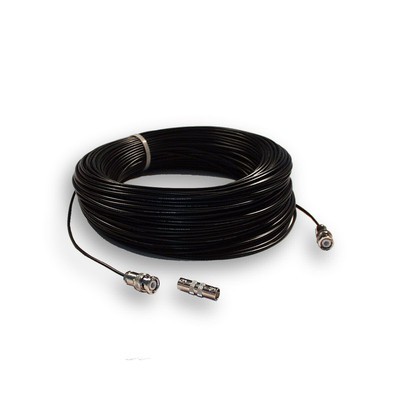

Tilbehør, 10m kabel til ATOMUR SAT

GPS-referenced Stratum-1 NTP server

> 10,000 NTP queries per second (approximately 600,000 per minute)

Built-in TCXO (Temperature-Compensated Crystal Oscillator) – ensures continued accuracy in the event of GPS failure

32-channel GPS antenna provides stable reception

Gigabit Ethernet (1GbE) with IPv4 and IPv6

NTP authentication: MD5, SHA1 and SHA256 for high security

Web interface and CLI for configuration and monitoring

RS232 output with timecode

Universal AC/DC power supply

GPS controlled time server for networking
NTPV4 protocol
GPS Timing at satellite lock: 15nano seconds
16 channel receiver that reduces the risk of signal loss
10 / 100baset Ethernet
HTTPS, HTTP, SSH, SCP, SNMP V1 / V2 / V3, SFTP, FTP, DHCP, DHCPv6.
SNMP V3
Linux Core
Low power consumption Only 7W
230vac 50-60Hz 0.1A
Operating temperature 0 - 50 °
comes with multi-antenna, wall mounting and 30 M RG58 antenna cable

Atomur- controlled GPS time server to the network 32
channel receiver which reduces the risk of signal loss
TCXO (Temperature Compensated X-tal Oscillator) in order to keep the time in the absence of GPS signal
10 / 100BaseT redundantly Ethernet
Low power consumption only 7W
230VAC 50-60Hz 0.1A
Operating temperature 0 to 50 °
Supplied with multi-antenna, wall mount and 30 m RG58 aerial cable

Active GPS signal amplifier with 8 outputs.
With TNC connector.
1U rack.
Anvendet example. to signal power several atomic clock-SAT TR / TRD time-servers

30 meter kabel til GPS antenne

Security-hardened, GPS-referenced Stratum-1 NTP v4 network time server.

Fast - up to 20,000 NTP polls per second for precise client synchronization

Highly stable, temperature-compensated backup crystal oscillator (TCXO)

Network-optimized Gigabit Ethernet (GbE)

Advanced 72-channel GPS receiver for reliable reception of the GPS satellite system.

Powerful, easy-to-use web interface with command-line interface

IPv4 and IPv6 Internet Protocols

Simple Network Management Protocol (SNMP v1, v2c, v3) monitoring. Full MD5, SHA1

SHA256 NTP authentication for improved security.

Peer-to-multiple external NTP servers for improved redundancy.

Warranty, free firmware updates and lifetime support.

CE and UKCA compliant with full EMC and electrical safety test reports.

Operating temperature: -20 to +60°C

MTBF: 143,000 hours

Supply voltage: 100-240VAC, 10W

Dimensions: 1U, 220 x 120 x 44 mm

Weight: 1.2kg
