Embedded windows 10/11 Fanless wide temperature RS232, ethernet 62368-1, 12vdc, 24vdc,48vdc

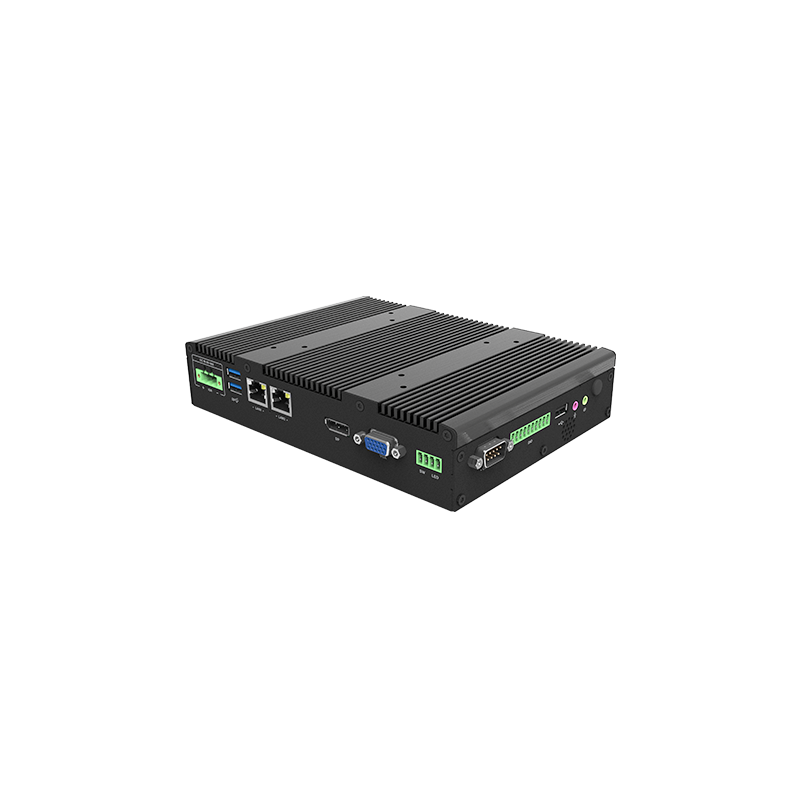

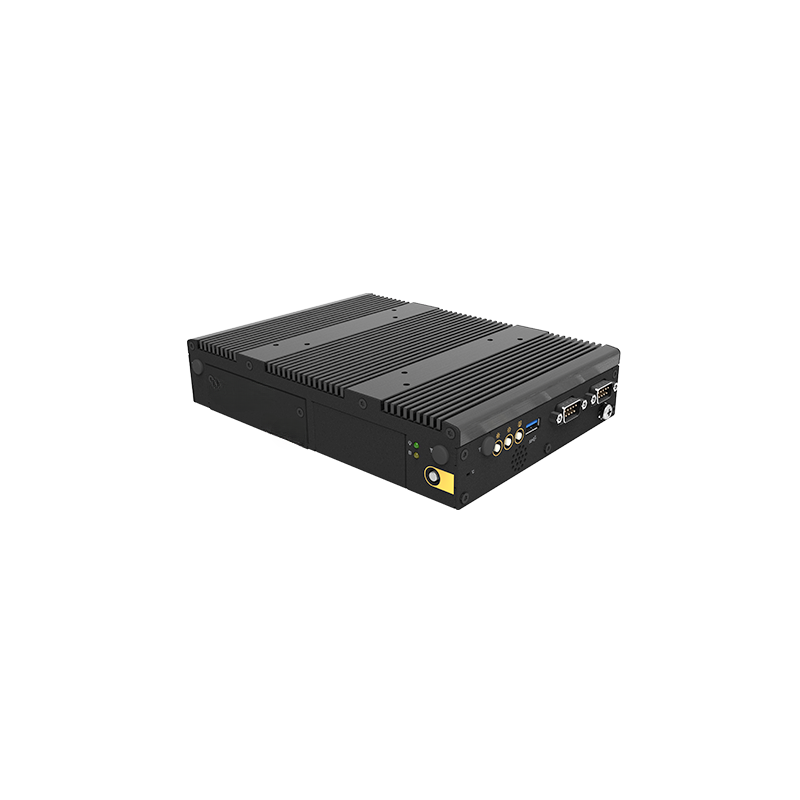

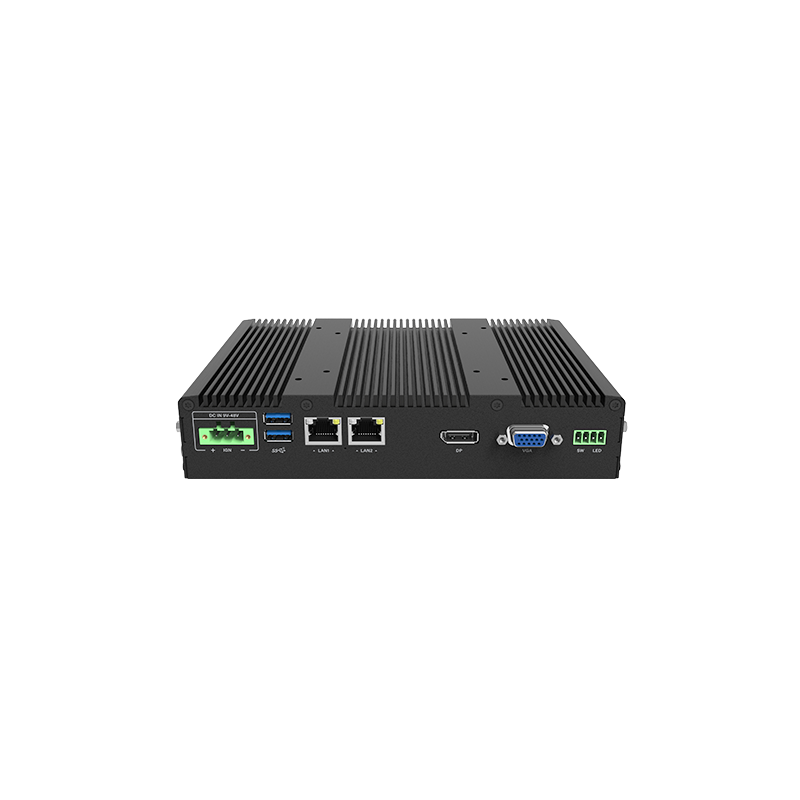

Embedded PC with Atom X6211E 2-core, TDP 12W, -40°C–70°C, 3XRS232/422/485, 8x isolated I/O, 2 x LAN, 4x USB, SIM, 9~48Vdc

Name: Embedded PC with Atom X6211E 2-core, TDP 12W, -40°C–70°C, 3XRS232/422/485, 8x isolated I/O, 2 x LAN, 4x USB, SIM, 9~48Vdc
Brand: Danbit A/S
SKU: EPC-ATOM-X6211E
Availability: Discontinued

Intel® Elkhart Lake Atom® X6211E processor 2 core

1x DDR4 SO-DIMM, MAX. 32GB

1x M.2 key E Type 2230 socket for Intel® CNVi/wireless module

Supports triple independent display

3x RS232/422/485

2x 1GbE LAN

3x USB 3.2 GEN.2 (10 Gbps)

1 x USB 2.0

8x isolated DIO (4xDI, 4xDI)

1x SIM

1x M.2 Type 2230 socket

1x full-size Mini-PCIe connector

CFM technology for Power Ignition Sensing function and PoE function

EMC emission/immunity standard for industrial environment: EN61000-6-4, EN61000-6-2

Safety certification: UL, cUL, CB 62368-1

Working temperature -40°C to 70°C (requires special WT RAM)

Dimensions 204.5x149x41.5mm

Wall/VESA/CDS/ DIN-RAIL mounting

9 ~48Vdc 3 pin terminal, Overvoltage protection 51~58V, Overcurrent protection 15A

WINDOWS10

CE, UKCA, FCC, ICES-003 Class A

EN61000-6-4, EN61000-6-2 (24VDC input only)

Safety: UL, cUL, CB, IEC/EN 62368-1

Call +45 56 66 20 20 for price

Quantity

This product is no longer available for sale.

Product number EPC-ATOM-X6211E

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

The is vibration resistant and incorporates EMC protections to ensure stable and continuous operation in equipment, control cabinets, and mobile equipment.
The PC passes various vibration and shock reliability tests, including random vibration (5G), sinusoidal vibration (1G), and shock resistance (50G), meeting the harsh industrial EMC testing standards (EN 61000-6-2 and EN 61000-6-4), UL certification product safety standard, and high-standard industrial-grade protections.
