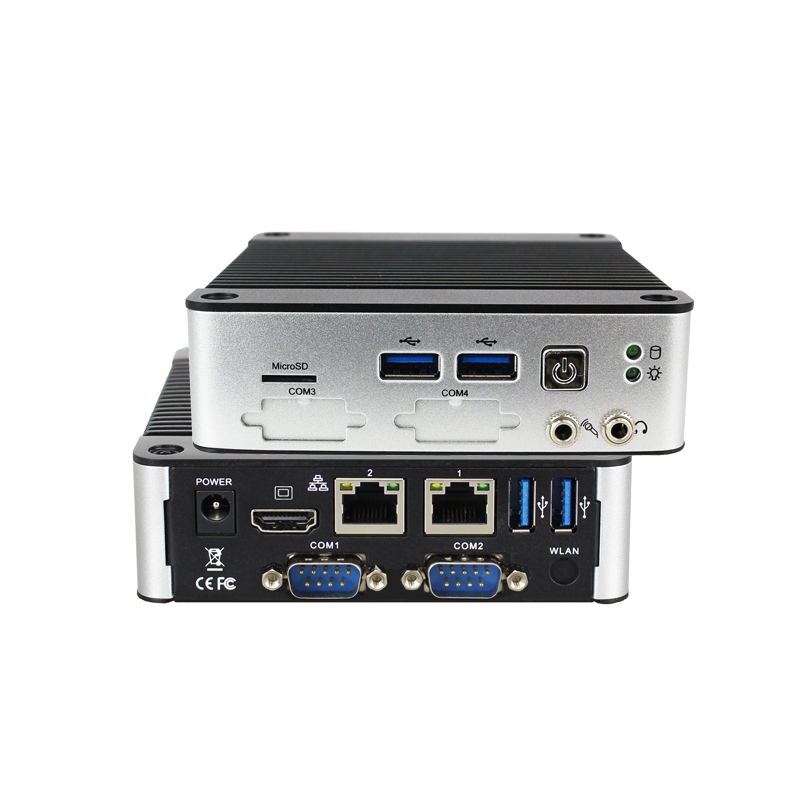

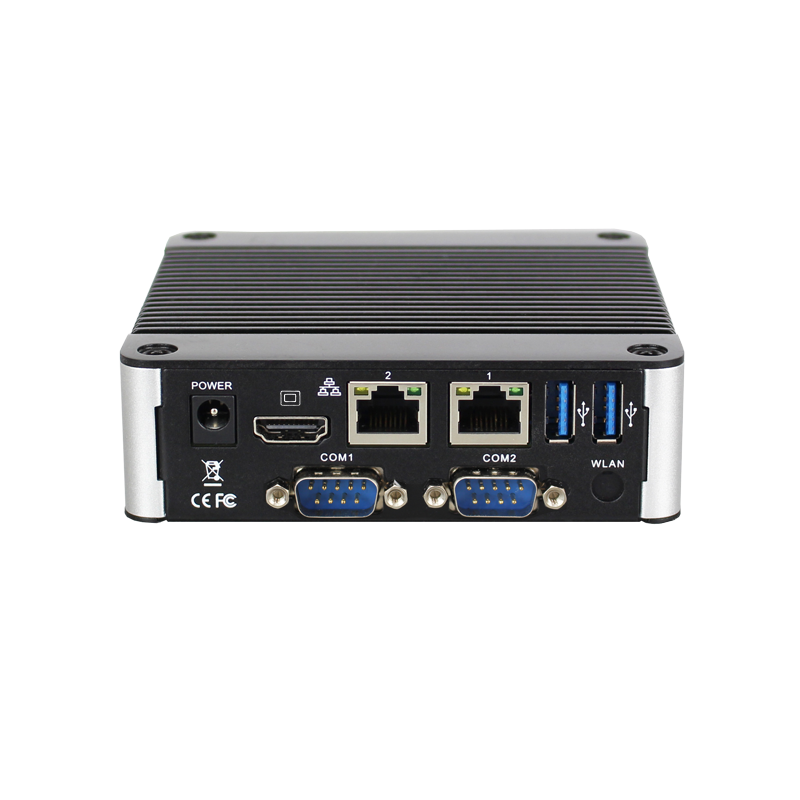

Fanless Mini Embedded PC with Atom ™ E8000

Intel® Atom X5-E8000 Quad Core

2x LAN, 2x RS232, 4x USB 3.0

Input voltage: +8V to +26VDC

Operating temperature: 0~60℃

Mounting: VESA100

Option: WiFi/BT Module, DIN mounting

OS support: Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian

NOT AUTO POWER ON

Call +45 56 66 20 20 for price
Quantity
This product is no longer available for sale.
LÆG I KURV
Product number EPC-VESA-E8000
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel® Atom x5-E8000 Quad Core 1.04GHz, 2.00GHz (Burst)
USB USB 3.0 x4 (Front x2, Rear x2)
Operating Temp. 0~60℃
BIOS AMI UEFI BIOS (Legacy mode switchable)
Forsyning DC +8V~+26V
Hukommelse SO-DIMM, DDR3L-1600MHz up to 8GB
Lyd Realtek ALC262VD Mic-in & Line-out
Netværk Realtek 8111H GbE x2 LAN
OS SUPPORT Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian
Porte DB9 RS-232 x2
Weight 510g
Dimensioner 115 x 115 x 35mm/DIN Rail Support (Optional)

EPC-VESA-E8000 is a modern version of the smallest PCs on the market today.

Equipped with 4 through mounting holes so that it can be mounted on a VESA 100 bracket, e.g. at the back of a monitor.
