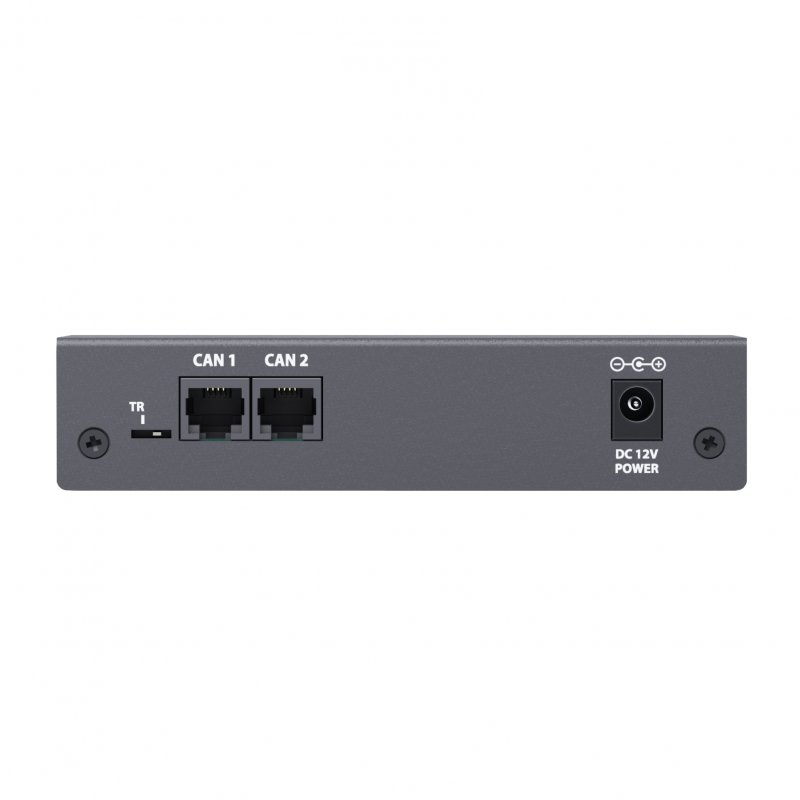

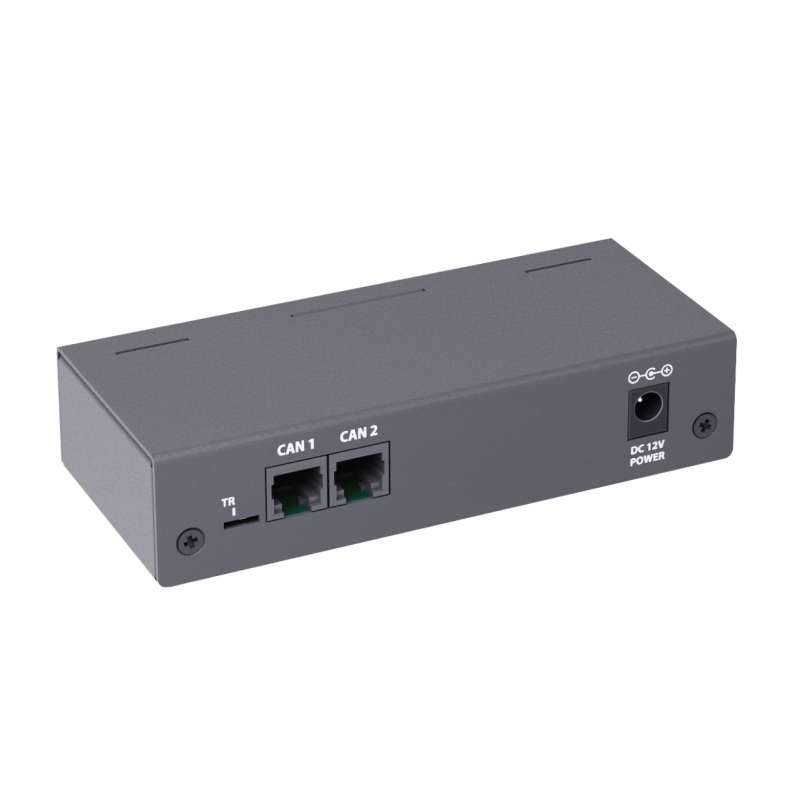

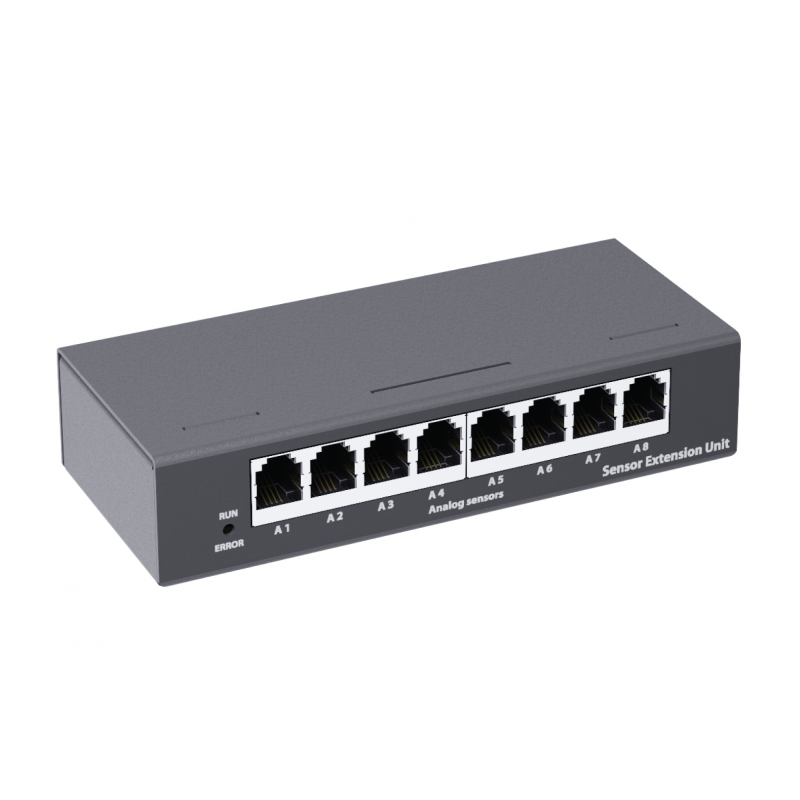

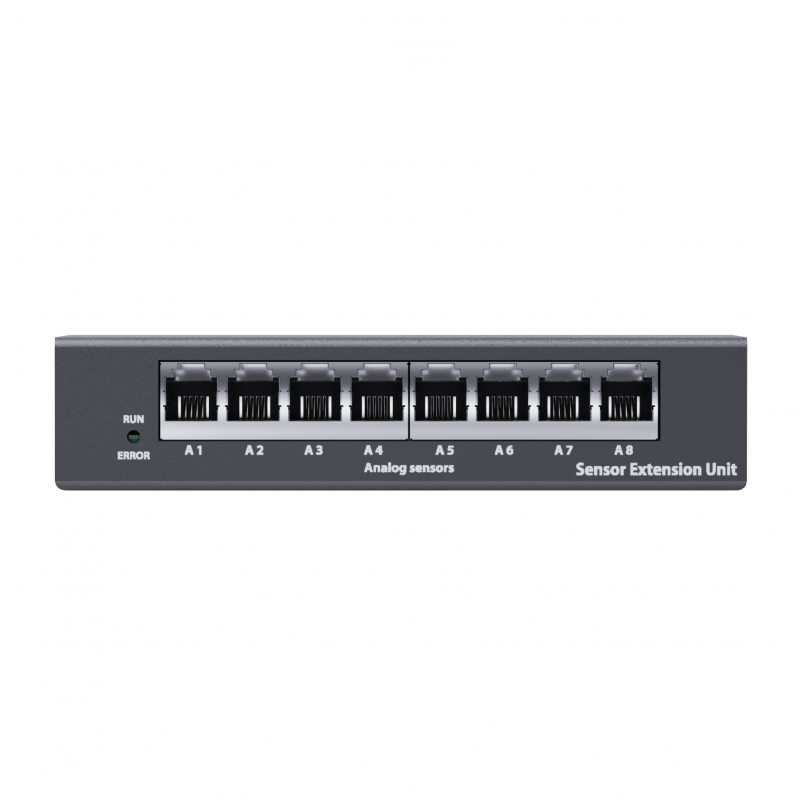

Sensor Extension Unit

Compact unit to increase analog sensor capacity for monitoring systems
Add up to 8 sensors per unit
Ports x8 RJ11 6P4C, x2 CAN bus
Power 12V DC, 0,5A
Operating temperature Min. -10° C - Max.+80° C
Dimensions 129 x 28,6 x 56 mm

2,825.39 NOK
Excl. VAT
Quantity
LÆG I KURV
Product number VTL100036
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -10° C - Max.+80° C
Input 8 analog sensor ports & 2 CAN ports RJ-12
Dimensioner 129 x 28,6 x 56

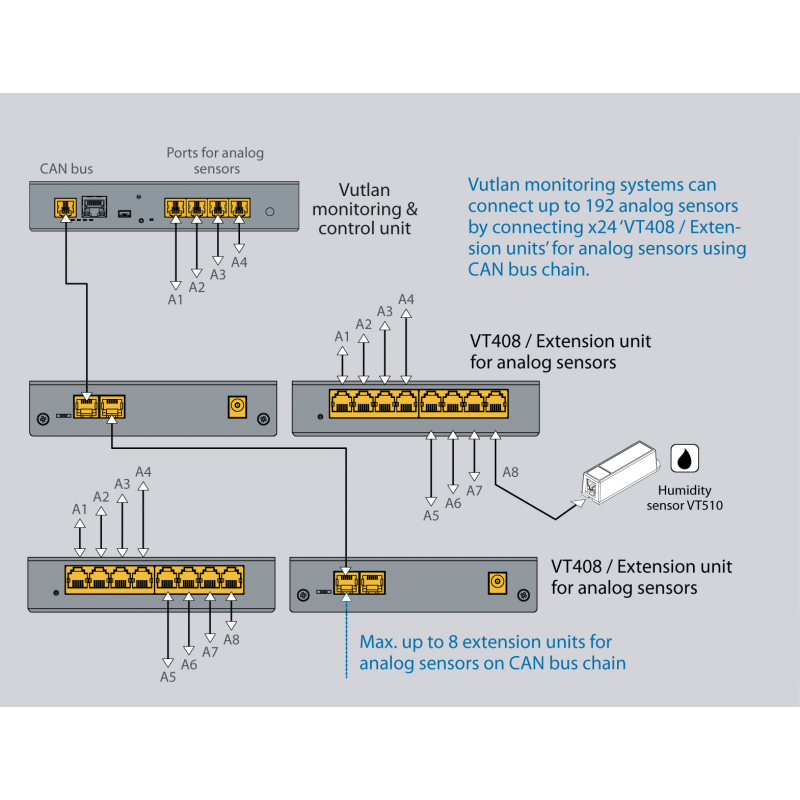

Expands the number of analog sensors for monitoring units. Supports up to 8 additional sensors per unit, with automatic system integration.
