5 Port Unmanaged Industrial Switch. 5 x 10 / 100Mbit. -25 - +70°C
5 Port Unmanaged Industrial Switch. 5 x 10 / 100Mbit. -25 - +70°C

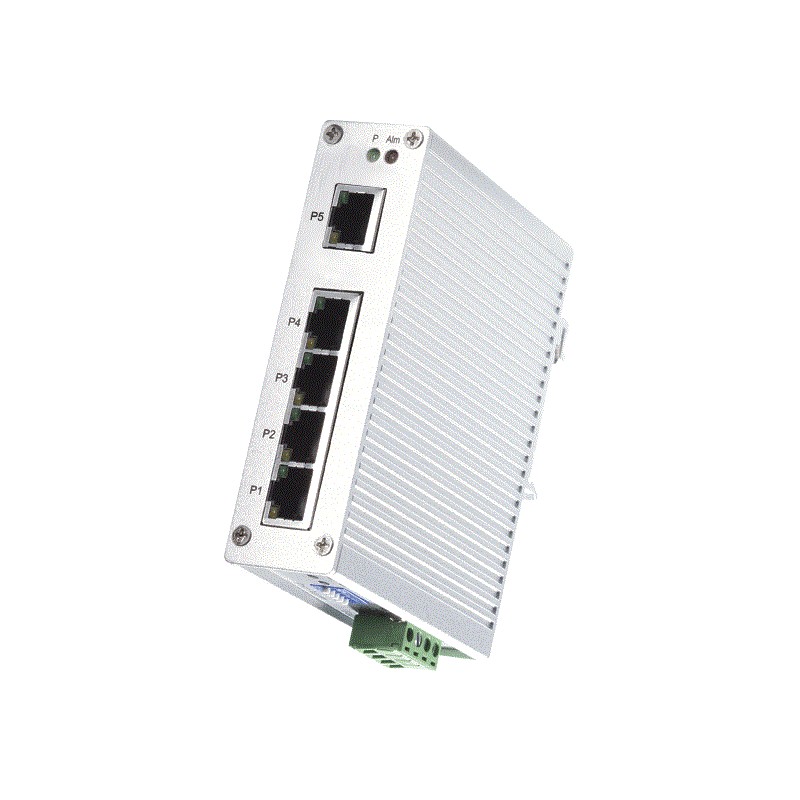

5 Port Unmanaged Industrial Switch. 5 x 10/100Mbit. -25 - +70°C. DIN rail mounting, 18-32VDC

5 x 10 / 100TX Ports with Auto MDI / MDI-X
Good size for industrial use
18-32VDC
relay port alerting
Support AC 1.5KV Hi-pot isolation protection IP31 Aluminum
Operating temperature: -25 to 70 degrees
Dimensions: 111.8mm (H) x 30mm (W) x 98.2mm (D)
Weight: 290g box without

1,853.97 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number ESW5M-D
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -25 ~ 70O C / -40 ~ 75O C (Udvidet temperatur)
Alarm DIP 1~5: Port Event Alarm Control On: Enable port link down alarm Off: Disable port link down alarm
Approval FCC Class A, CE/EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Chok/Vibration IEC60068-2-27 , IEC60068-2-6
Forbindelse 10/100 Base-TX: RJ-45
Forsyning DC 18~32V with reverse polarity protection
Interface 5 x 10/100 Base-TX with Auto MDI/MDI-X, Auto-Negotiation function
Kabel Cat.3, Cat.4, Cat.5 unshielded twisted pair or shielded twisted pair cable. The Link distance is maximum 100
Standarder IEEE802.3 10Base-T IEEE802.3u 100Base-TX
Switch 3.2Gbps switch fabric
Weight 372g with package 290g without package
