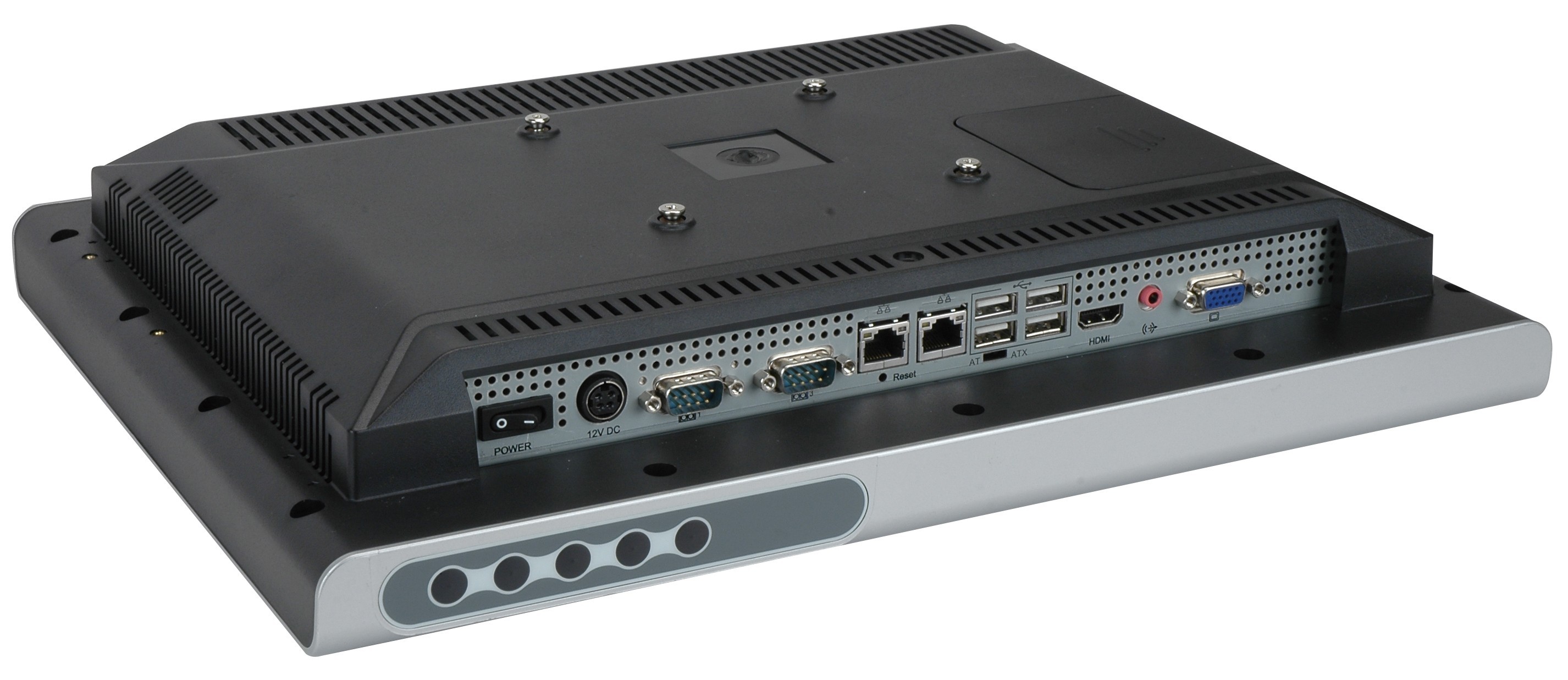

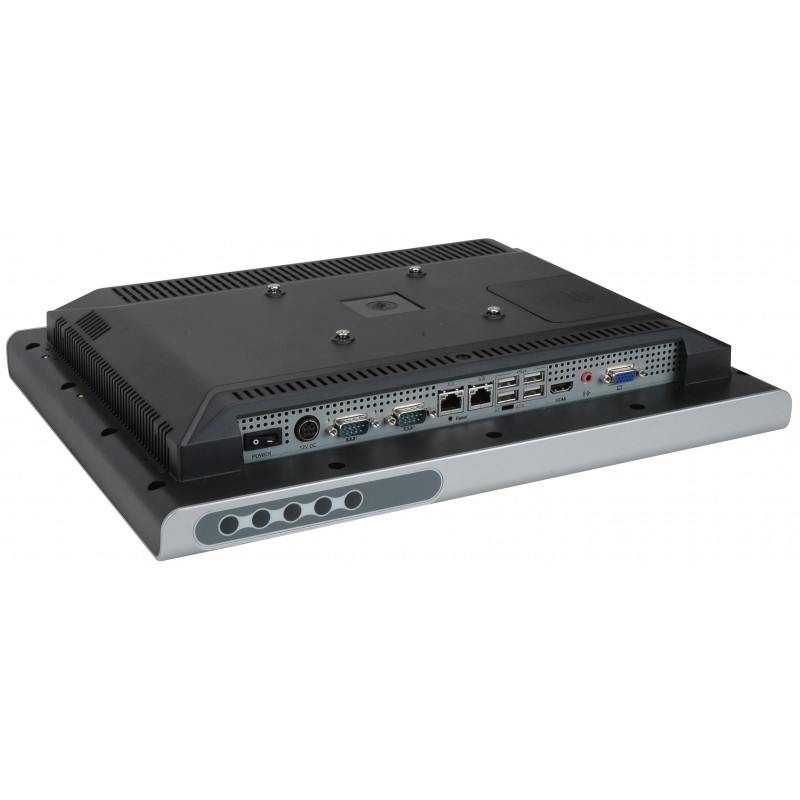

19" Industriel Panel PC, i7 2.66GHz Intel 620M

19"
Touch
2GB RAM Max 4GB
1xRS232, 1xRS232/422/485
4xUSB
1xVGA, 1XHDMI
2xRJ45
12VDC

IPP19I7
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Buid To Order Panel PC.
Samles på bestilling, SSD disk størrelse efter ønske.
Kan levere
Oplyste pris er uden OS og SSD installeret.

CPU
2.66 GHz Intel® Core™ i7-620M
Chipset
Intel® HM55 chipset
Dimensioner
470 x 383 x 72 mm (H x B x D) , Cut out 300 x 420 mm
Hukommelse
2GB Two 204-pin 800/1066MHz DDR3 dual-channel SO-DIMMs supported (Max. 8GB)
IP-Tæthed
IP64 front
Lyd
AMP 3W + 3W (internal speakers)
Materiale
Plastic
Montering
Panel, Wall, Stand and Arm VESA 100mm x 100mm
Skærm
Max Resolution 1280 x 1024 Brightness (cd/m²) 350 Contrast Ratio 1000 : 1 LCD Color 16.7M Pixel Pitch (mm) 0.294 (H) x 0.294 (V) Viewing Angle (H-V) 170º / 160º Backlight MTBF 50000 hrs (LED backlighting)
Strømforbrug
88Watt with (Intel® T7500, 2GB memory, 80G HDD)
Strømforsyning
12VDC, Power Adapter 96W Power Adapter (Meet PSE) Input: 90VAC~264VAC, 50 / 60 Hz Output: 12VDC
Temperatur
Operation Temperature (°C) 0°C~50°C Storage Temperature (°C) -20°C ~60°C
Touch
Resistive type 5-wire (onboard controller)
Vekt
6.2KG
Watchdog
Software programmable supports 1~255 sec. System reset
